MAXDatasheet (PDF)

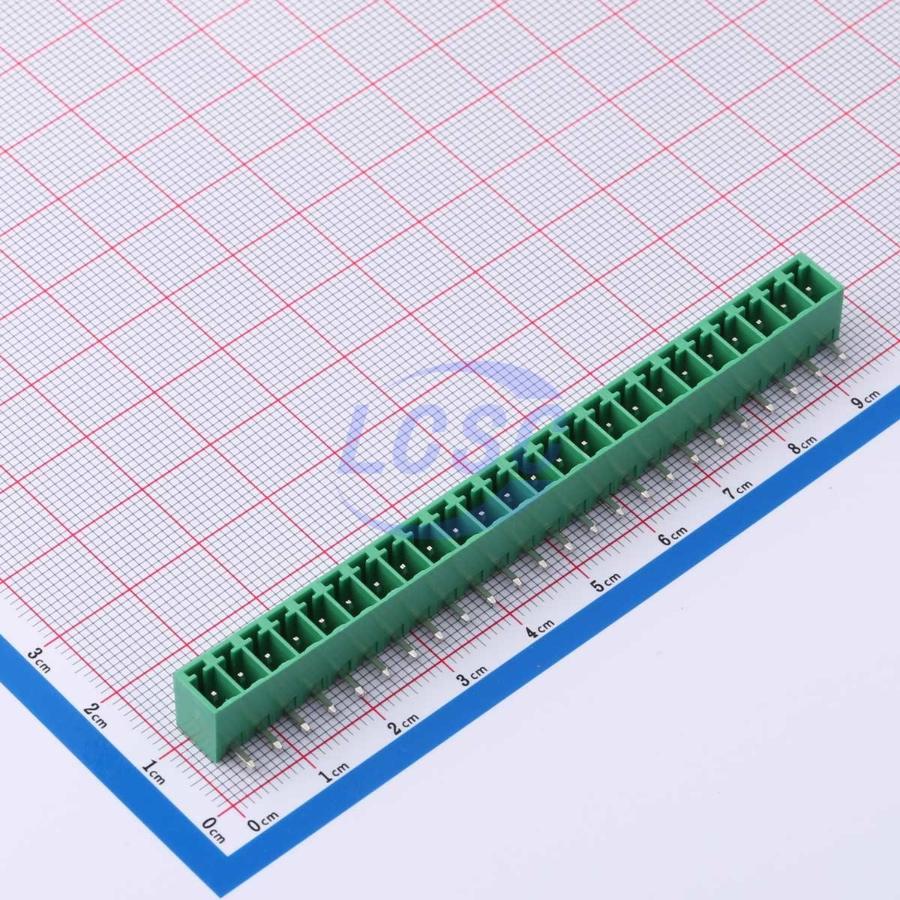

MX15EDGRC-3.81-24P-GN01-Cu-A
24 Position Board Side/Socket - Closed 3.81mm Pitch Right-Angle Pin
Through Hole,Right Angle,P=3.81mmROHS CompliantActive
TERM BLOCK HDR 24POS 3.81mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15EDGRC-3.81-24P-GN01-Cu-A
- Store part #
- C5188179
- Package / case
- Through Hole,Right Angle,P=3.81mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C5188179
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.08 | ₹55.08 |
| 10+ | ₹43.16 | ₹431.60 |
| 30+ | ₹38.17 | ₹1,145.10 |
| 100+ | ₹31.88 | ₹3,188.00 |
| 500+ | ₹29.07 | ₹14,535.00 |
| 1,000+ | ₹27.32 | ₹27,320.00 |
1 × ₹55.08
₹55.08
excl. GST
₹64.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per bag
MX15EDGRC-3.81-24P-GN01-Cu-A
₹55.08 for 1 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x24P
- Number of Pins
- 24P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.81mm
- Connector Type
- Board Side/Socket - Closed
- Color
- Green
- Number of PINs Per Row
- 24
- Termination Style
- Without fixing device
- Mounting Type
- Right-Angle
- Number of Rows
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 100 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.99 g
