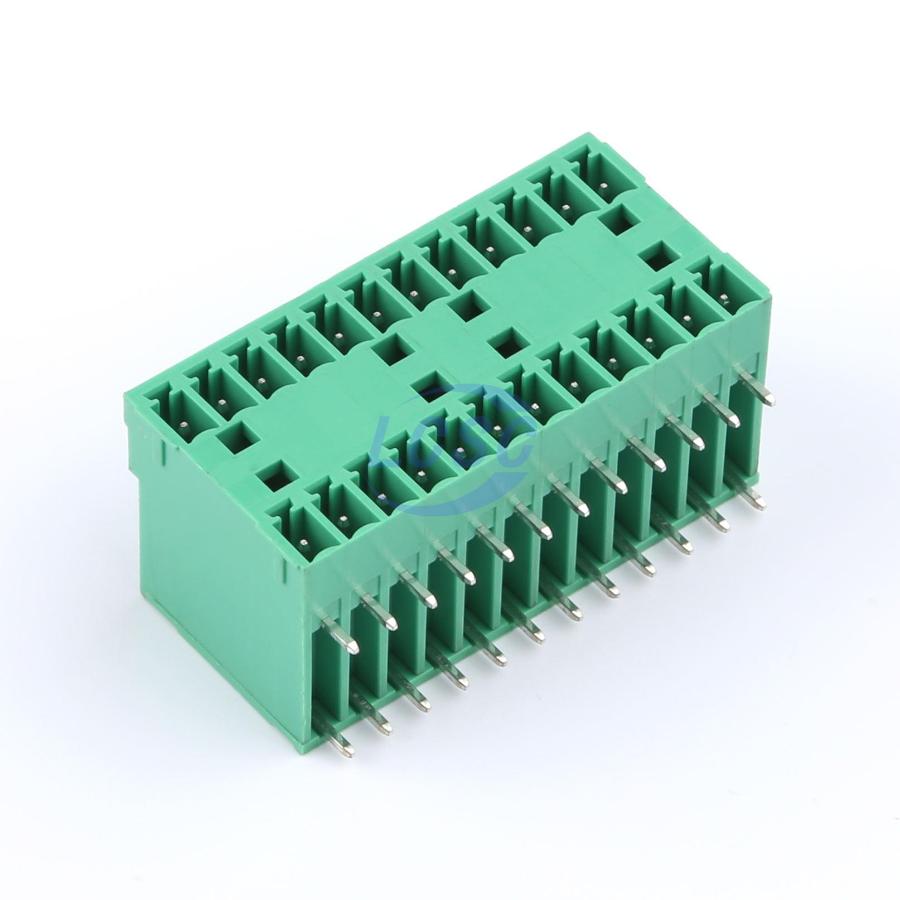

MX15EDGRH-3.81-2*12P-GN01-Cu-A MAX
MAX

MX15EDGRH-3.81-2*12P-GN01-Cu-A

24 Position Board Side/Socket - Closed 3.81mm Pitch Right-Angle Pin

Through Hole,Right Angle,P=3.81mmROHS CompliantActive

TERM BLOCK HDR 24POS 3.81mm

Manufacturer
MAX
Manufacturer part #
MX15EDGRH-3.81-2*12P-GN01-Cu-A
Store part #
C48688068
Package / case
Through Hole,Right Angle,P=3.81mm
Category
Headers, Plugs and Sockets
Packaging
Box-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

37 in stock

#C48688068

Stock & price checked 7 days ago

QuantityUnit pricePack price
1+₹208.07₹208.07
10+₹173.22₹1,732.20
30+₹153.98₹4,619.40
160+₹132.10₹21,136.00
480+₹122.58₹58,838.40
960+₹118.12₹1,13,395.20

1 × ₹208.07

₹208.07

excl. GST

₹245.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 160 per box

MX15EDGRH-3.81-2*12P-GN01-Cu-A

₹208.07 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current Rating
8A
Number of Positions or Pins
2x12P
Number of Pins
24P
Voltage Rating
300V
Operating Temperature
-40℃~+105℃
Pitch
3.81mm
Color
Green
Connector Type
Board Side/Socket - Closed
Number of PINs Per Row
12
Termination Style
Without fixing device
Mounting Type
Right-Angle
Number of Rows
2

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Box-packed
Standard pack
160 / Box
Sold per
Piece
Minimum order
1
Unit weight
13.2 g
