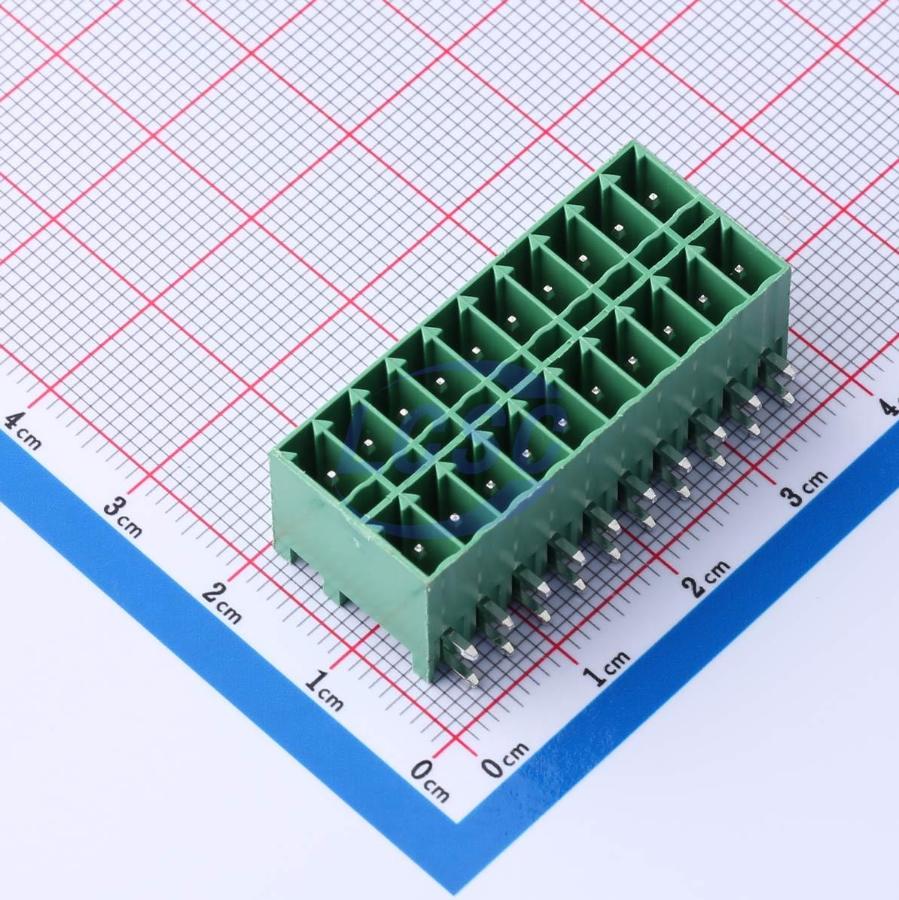

MX15EDGRHB-3.5-2*10P-GN01-Cu-A MAX
MAX

MX15EDGRHB-3.5-2*10P-GN01-Cu-A

20 Position Board Side/Socket - Closed 3.5mm Pitch Right-Angle Pin

Through Hole,Right Angle,P=3.5mmROHS CompliantActive

TERM BLOCK HDR 20POS 3.5mm

Manufacturer
MAX
Manufacturer part #
MX15EDGRHB-3.5-2*10P-GN01-Cu-A
Store part #
C5290444
Package / case
Through Hole,Right Angle,P=3.5mm
Category
Headers, Plugs and Sockets
Packaging
Box-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

79 in stock

#C5290444

Stock & price checked 9 days ago

QuantityUnit pricePack price
1+₹234.49₹234.49
10+₹199.61₹1,996.10
30+₹177.65₹5,329.50
140+₹155.25₹21,735.00
560+₹145.13₹81,272.80
980+₹140.61₹1,37,797.80

1 × ₹234.49

₹234.49

excl. GST

₹276.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 140 per box

MX15EDGRHB-3.5-2*10P-GN01-Cu-A

₹234.49 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current Rating
8A
Number of Positions or Pins
1x10P
Number of Pins
20P
Voltage Rating
300V
Operating Temperature
-40℃~+105℃
Pitch
3.5mm
Connector Type
Board Side/Socket - Closed
Color
Green
Number of PINs Per Row
10
Termination Style
Without fixing device
Mounting Type
Right-Angle
Number of Rows
2

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Box-packed
Standard pack
140 / Box
Sold per
Piece
Minimum order
1
Unit weight
3.27 g
