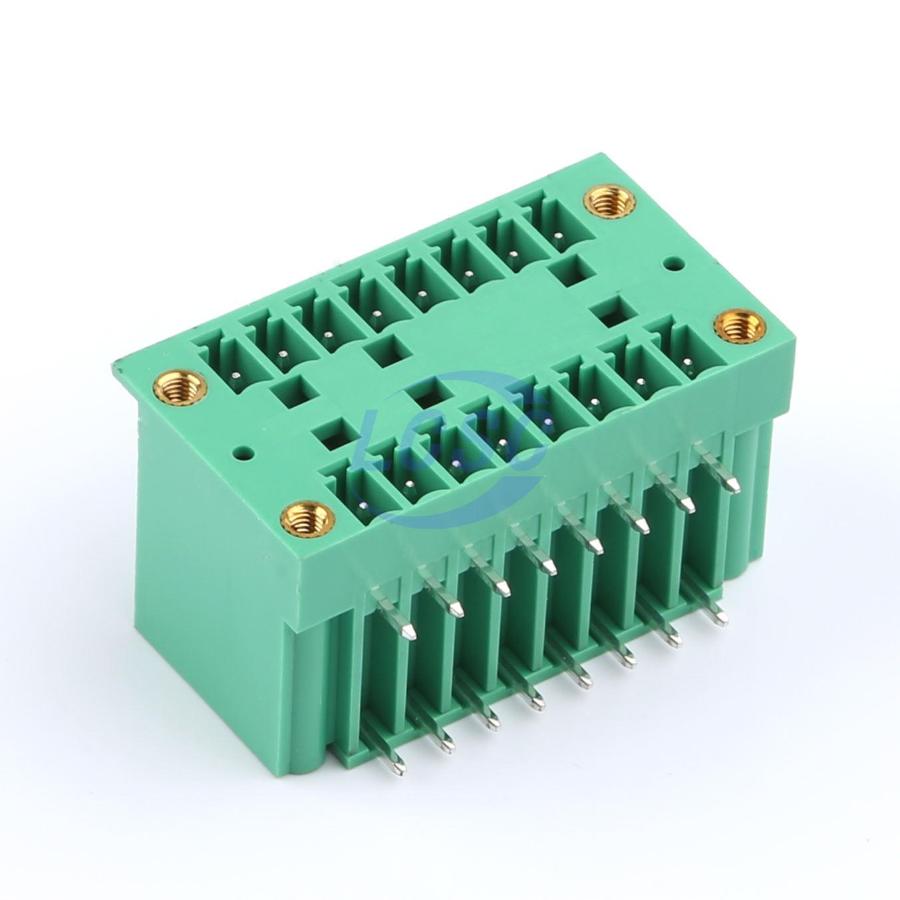

MX15EDGRHM-3.81-2*08P-GN01-Cu-A MAX
MAX

MX15EDGRHM-3.81-2*08P-GN01-Cu-A

16 Position Board Side/Socket - Closed 3.81mm Pitch Right-Angle Pin

Through Hole,Right Angle,P=3.81mmROHS CompliantActive

TERM BLOCK HDR 16POS 3.81mm

Manufacturer
MAX
Manufacturer part #
MX15EDGRHM-3.81-2*08P-GN01-Cu-A
Store part #
C48688075
Package / case
Through Hole,Right Angle,P=3.81mm
Category
Headers, Plugs and Sockets
Packaging
Box-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

52 in stock

#C48688075

Stock & price checked 10 days ago

QuantityUnit pricePack price
1+₹184.37₹184.37
10+₹153.38₹1,533.80
30+₹136.35₹4,090.50
184+₹117.11₹21,548.24
552+₹108.39₹59,831.28
920+₹104.54₹96,176.80

1 × ₹184.37

₹184.37

excl. GST

₹217.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 184 per box

MX15EDGRHM-3.81-2*08P-GN01-Cu-A

₹184.37 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current Rating
8A
Number of Positions or Pins
2x8P
Number of Pins
16P
Voltage Rating
300V
Operating Temperature
-40℃~+105℃
Pitch
3.81mm
Color
Green
Connector Type
Board Side/Socket - Closed
Number of PINs Per Row
8
Termination Style
Screw
Mounting Type
Right-Angle
Number of Rows
2

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Box-packed
Standard pack
184 / Box
Sold per
Piece
Minimum order
1
Unit weight
11.8 g
