MAXDatasheet (PDF)

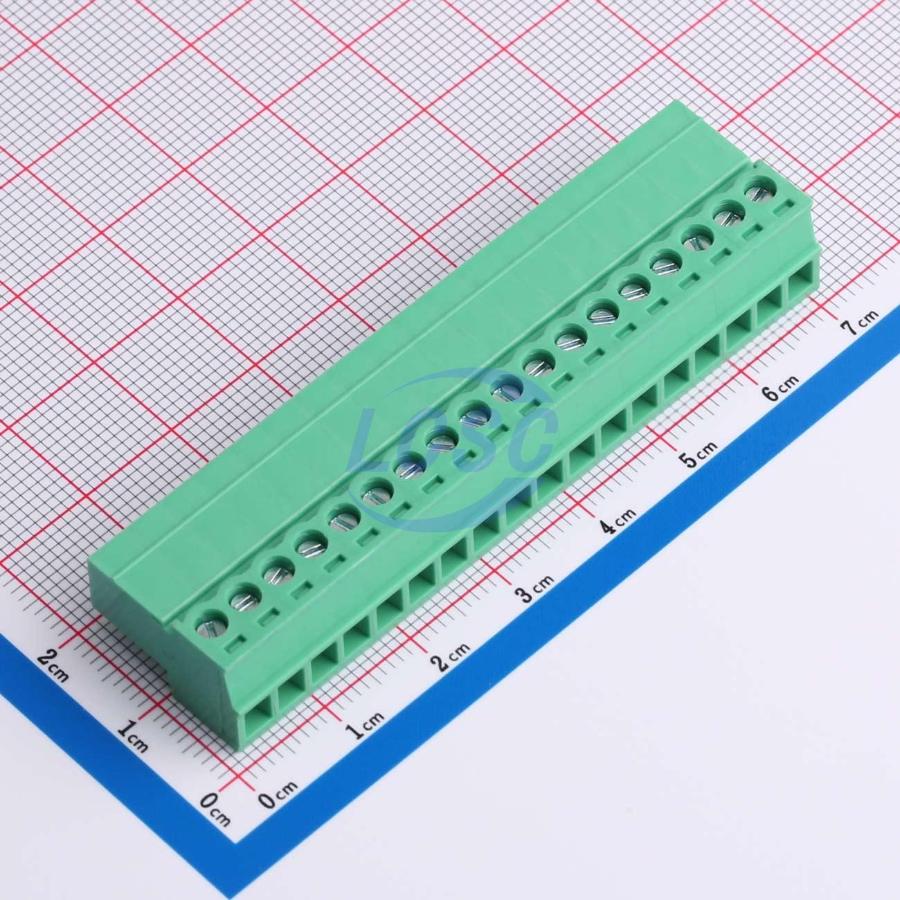

MX15EDGRK-3.81-18P-GN01-Cu-Y-A
18 Position 3.81mm Pitch
P=3.81mmROHS CompliantActive
18POS 3.81mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15EDGRK-3.81-18P-GN01-Cu-Y-A
- Store part #
- C5188415
- Package / case
- P=3.81mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
171 in stock
#C5188415
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹215.04 | ₹215.04 |
| 10+ | ₹197.44 | ₹1,974.40 |
| 40+ | ₹186.71 | ₹7,468.40 |
| 80+ | ₹175.34 | ₹14,027.20 |
| 480+ | ₹170.40 | ₹81,792.00 |
| 1,000+ | ₹168.26 | ₹1,68,260.00 |
1 × ₹215.04
₹215.04
excl. GST
₹253.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 40 per bag
MX15EDGRK-3.81-18P-GN01-Cu-Y-A
₹215.04 for 1 + GST
Specifications
- Wire Gauge - mm2
- 1.5
- Wire Gauge - AWG
- 16~28
- Number of Positions or Pins
- 1x18P
- Number of Pins
- 18P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 18
- Number of Rows
- 1
- Current Rating
- 8A
- Outlet Direction (Vertical Basis)
- Top Entry
- Connection Type
- Screw Connection (M2)
- Voltage Rating
- 300V
- Pitch
- 3.81mm
- Connector Type
- Male Plug
- Color
- Green
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 40 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 14.74 g
