MAXDatasheet (PDF)

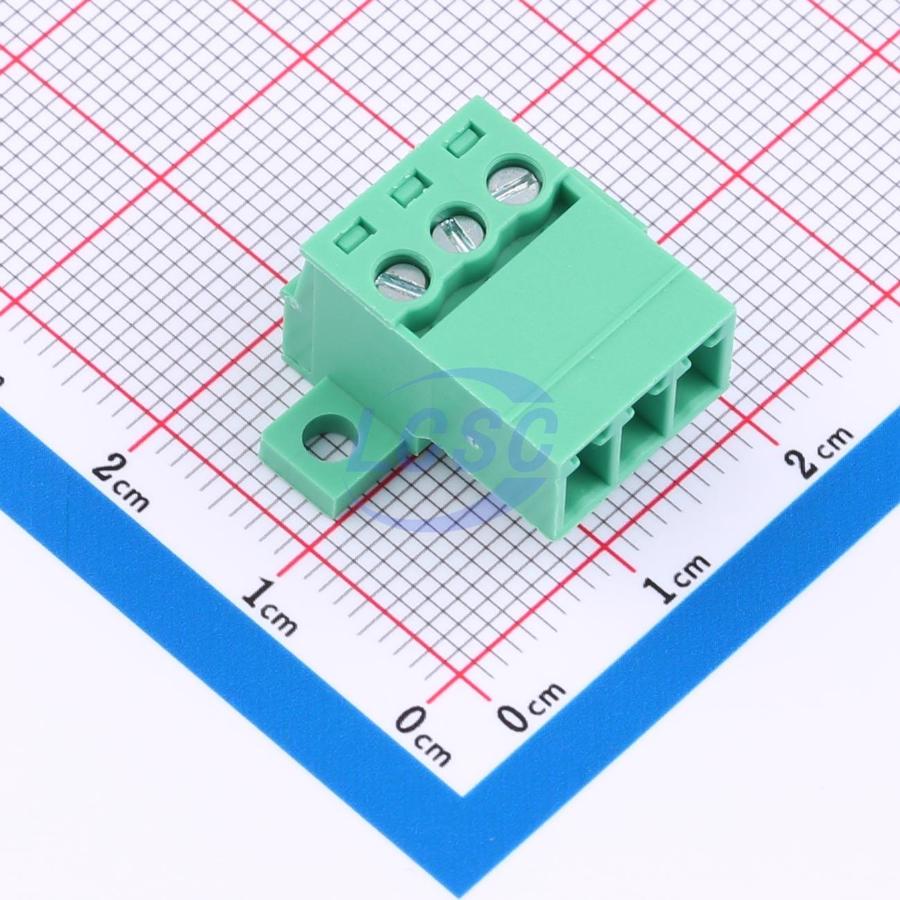

MX15EDGRKF-3.81-03P-GN01-Cu-Y-A
3 Position Male Plug 3.81mm Pitch
P=3.81mmROHS CompliantActive
TERM BLOCK PLUG 3POS 3.81mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15EDGRKF-3.81-03P-GN01-Cu-Y-A
- Store part #
- C48688080
- Package / case
- P=3.81mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
248 in stock
#C48688080
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.69 | ₹51.69 |
| 10+ | ₹40.27 | ₹402.70 |
| 30+ | ₹35.54 | ₹1,066.20 |
| 250+ | ₹29.50 | ₹7,375.00 |
| 500+ | ₹26.71 | ₹13,355.00 |
| 1,000+ | ₹24.98 | ₹24,980.00 |
1 × ₹51.69
₹51.69
excl. GST
₹60.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per bag
MX15EDGRKF-3.81-03P-GN01-Cu-Y-A
₹51.69 for 1 + GST
Specifications
- Wire Gauge - mm2
- 0.2~1.5
- Wire Gauge - AWG
- 16~28
- Number of Positions or Pins
- 1x3P
- Number of Pins
- 3P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 3
- Number of Rows
- 1
- Current Rating
- 8A
- Outlet Direction (Vertical Basis)
- Horizontal Termination
- Connection Type
- Screw Connection (M2)
- Voltage Rating
- 300V
- Pitch
- 3.81mm
- Connector Type
- Male Plug
- Color
- Green
- Termination Style
- Screw
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Bag-packed
- Standard pack
- 250 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.623 g
