MAXDatasheet (PDF)

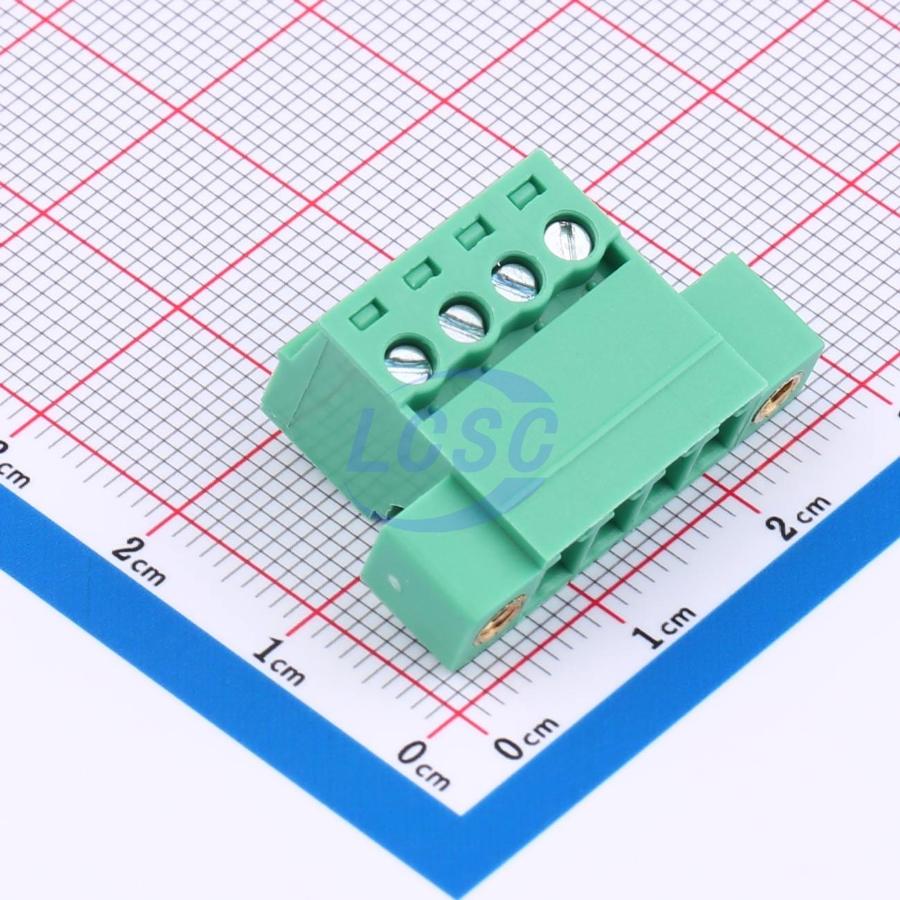

MX15EDGRKP-3.81-04P-GN01-Cu-Y-A
4 Position Male Plug 3.81mm Pitch
P=3.81mmROHS CompliantActive
TERM BLOCK PLUG 4POS 3.81mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15EDGRKP-3.81-04P-GN01-Cu-Y-A
- Store part #
- C48688089
- Package / case
- P=3.81mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
156 in stock
#C48688089
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.83 | ₹83.83 |
| 10+ | ₹67.86 | ₹678.60 |
| 30+ | ₹59.88 | ₹1,796.40 |
| 200+ | ₹52.11 | ₹10,422.00 |
| 400+ | ₹47.27 | ₹18,908.00 |
| 1,000+ | ₹44.97 | ₹44,970.00 |
1 × ₹83.83
₹83.83
excl. GST
₹98.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 200 per bag
MX15EDGRKP-3.81-04P-GN01-Cu-Y-A
₹83.83 for 1 + GST
Specifications
- Wire Gauge - mm2
- 0.2~1.5
- Wire Gauge - AWG
- 16~28
- Number of Positions or Pins
- 1x4P
- Number of Pins
- 4P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 4
- Number of Rows
- 1
- Current Rating
- 8A
- Outlet Direction (Vertical Basis)
- Horizontal Termination
- Connection Type
- Screw Connection (M2)
- Voltage Rating
- 300V
- Pitch
- 3.81mm
- Connector Type
- Male Plug
- Color
- Green
- Termination Style
- Screw
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Bag-packed
- Standard pack
- 200 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.056 g
