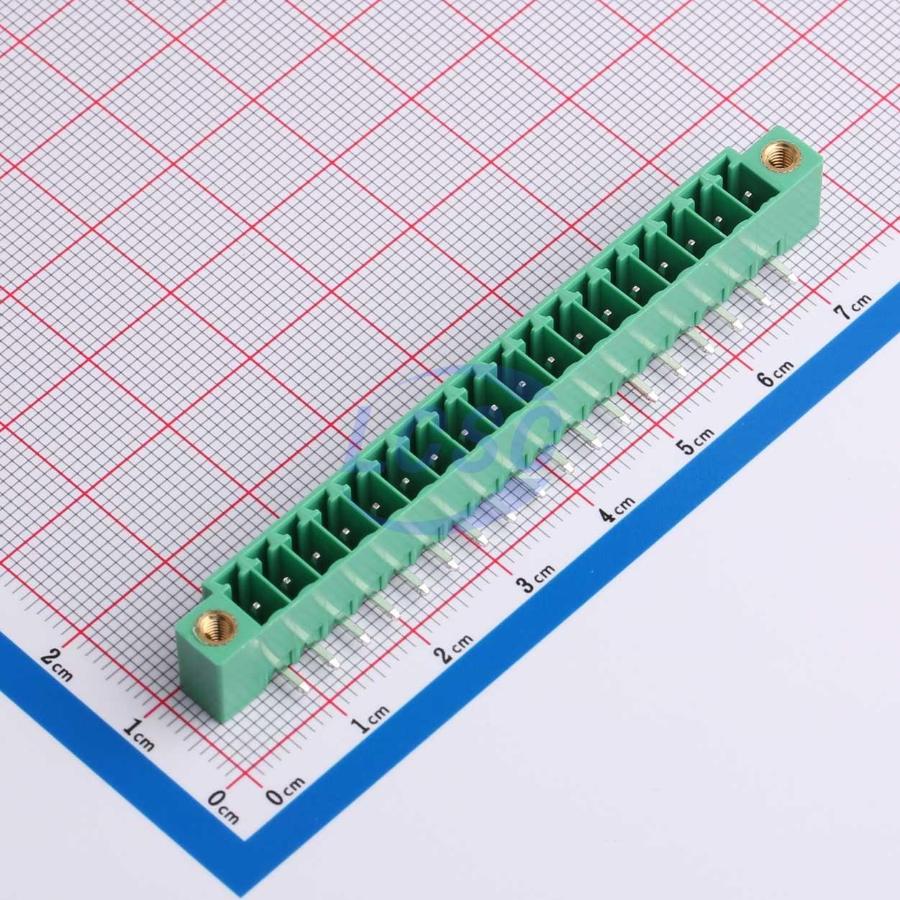

MX15EDGRM-3.5-18P-GN01-Cu-A
18 Position Board Side/Socket - Closed 3.5mm Pitch Right-Angle Pin
Through Hole,Right Angle,P=3.5mmROHS CompliantActive
TERM BLOCK HDR 18POS 3.5mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15EDGRM-3.5-18P-GN01-Cu-A
- Store part #
- C5188355
- Package / case
- Through Hole,Right Angle,P=3.5mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
77 in stock
#C5188355
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.02 | ₹59.02 |
| 10+ | ₹46.79 | ₹467.90 |
| 30+ | ₹41.42 | ₹1,242.60 |
| 100+ | ₹34.99 | ₹3,499.00 |
| 500+ | ₹31.98 | ₹15,990.00 |
| 1,000+ | ₹30.27 | ₹30,270.00 |
1 × ₹59.02
₹59.02
excl. GST
₹69.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per bag
MX15EDGRM-3.5-18P-GN01-Cu-A
₹59.02 for 1 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x18P
- Number of Pins
- 18P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.5mm
- Color
- Green
- Connector Type
- Board Side/Socket - Closed
- Number of PINs Per Row
- 18
- Termination Style
- Screw
- Mounting Type
- Right-Angle
- Number of Rows
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 100 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.294 g
