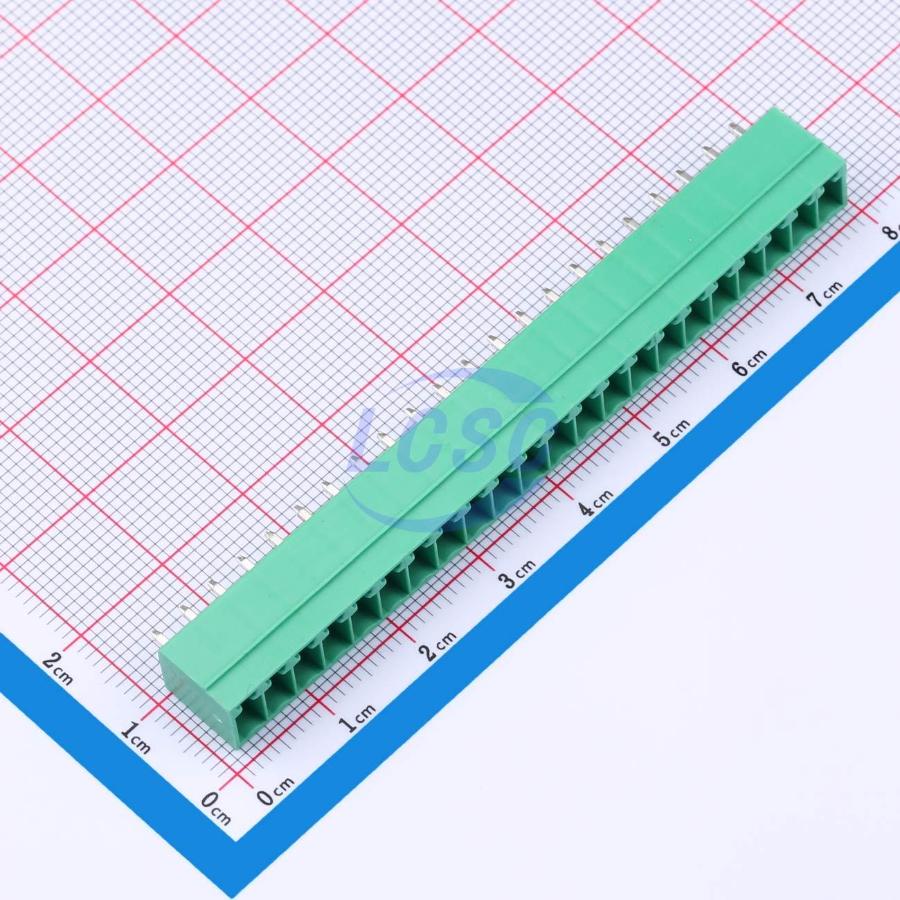

MX15EDGVC-3.5-22P-GN01-Cu-A
22 Position Board Side/Socket - Closed 3.5mm Pitch Straight Pin
Through Hole,P=3.5mmROHS CompliantActive
TERM BLOCK HDR 22POS 3.5mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15EDGVC-3.5-22P-GN01-Cu-A
- Store part #
- C5188338
- Package / case
- Through Hole,P=3.5mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
155 in stock
#C5188338
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.73 | ₹52.73 |
| 10+ | ₹41.33 | ₹413.30 |
| 30+ | ₹36.45 | ₹1,093.50 |
| 100+ | ₹30.55 | ₹3,055.00 |
| 500+ | ₹27.90 | ₹13,950.00 |
| 1,000+ | ₹26.27 | ₹26,270.00 |
1 × ₹52.73
₹52.73
excl. GST
₹62.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per bag
MX15EDGVC-3.5-22P-GN01-Cu-A
₹52.73 for 1 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x22P
- Number of Pins
- 22P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.5mm
- Connector Type
- Board Side/Socket - Closed
- Color
- Green
- Number of PINs Per Row
- 22
- Termination Style
- Without fixing device
- Mounting Type
- Through Hole
- Number of Rows
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 100 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.05 g
