MAXDatasheet (PDF)

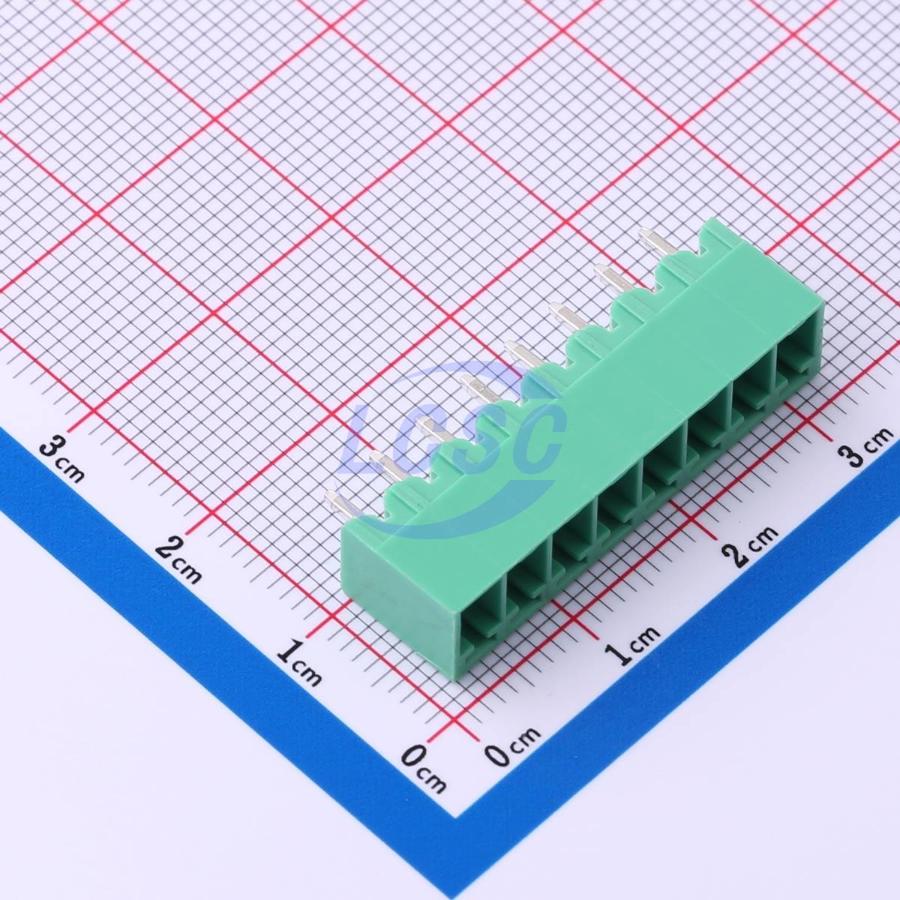

MX15EDGVC-3.81-08P-GN01-Cu-A
8 Position Board Side/Socket - Closed 3.81mm Pitch Straight Pin
Through Hole,P=3.81mmROHS CompliantActive
TERM BLOCK HDR 8POS 3.81mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15EDGVC-3.81-08P-GN01-Cu-A
- Store part #
- C5188186
- Package / case
- Through Hole,P=3.81mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
310 in stock
#C5188186
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.54 | ₹92.70 |
| 50+ | ₹14.79 | ₹739.50 |
| 250+ | ₹12.45 | ₹3,112.50 |
| 500+ | ₹11.05 | ₹5,525.00 |
| 2,500+ | ₹9.92 | ₹24,800.00 |
| 5,000+ | ₹9.35 | ₹46,750.00 |
5 × ₹18.54
₹92.70
excl. GST
₹109.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per bag
MX15EDGVC-3.81-08P-GN01-Cu-A
₹92.70 for 5 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x8P
- Number of Pins
- 8P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.81mm
- Connector Type
- Board Side/Socket - Closed
- Color
- Green
- Number of PINs Per Row
- 8
- Termination Style
- Without fixing device
- Mounting Type
- Through Hole
- Number of Rows
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 250 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.62 g
