MAXDatasheet (PDF)

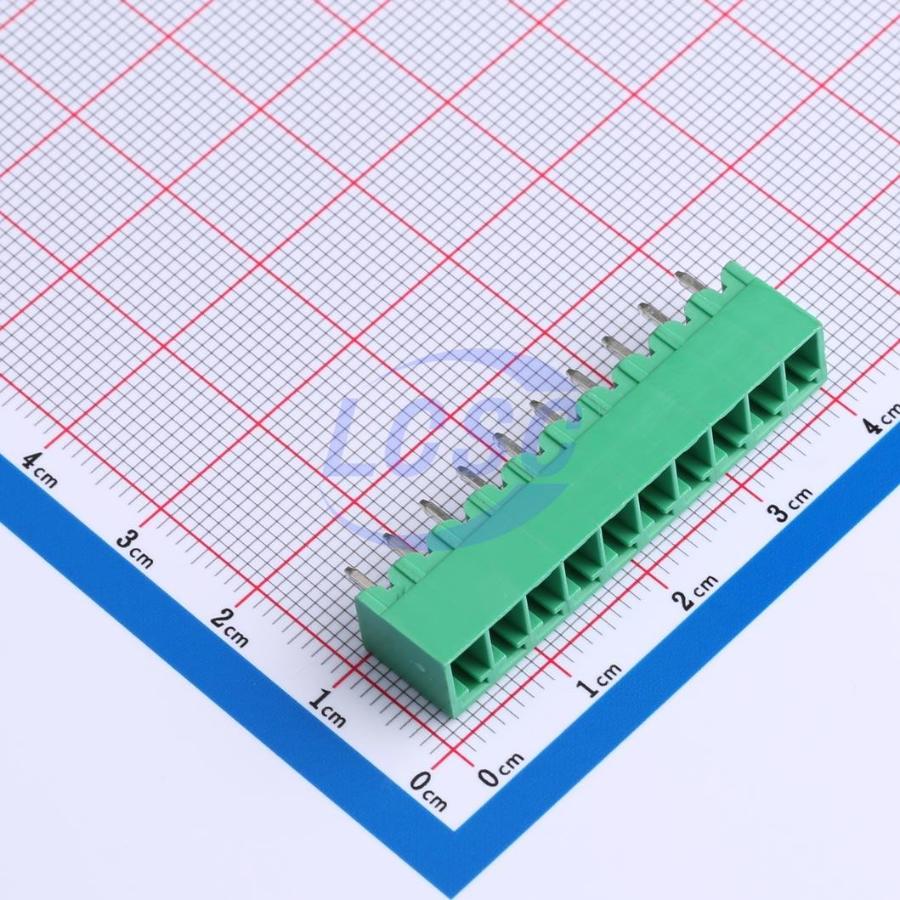

MX15EDGVC-3.81-10P-GN01-Cu-A
10 Position Board Side/Socket - Closed 3.81mm Pitch Straight Pin
Through Hole,P=3.81mmROHS CompliantActive
TERM BLOCK HDR 10POS 3.81mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15EDGVC-3.81-10P-GN01-Cu-A
- Store part #
- C5188188
- Package / case
- Through Hole,P=3.81mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C5188188
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.85 | ₹114.25 |
| 50+ | ₹18.06 | ₹903.00 |
| 200+ | ₹15.44 | ₹3,088.00 |
| 400+ | ₹12.89 | ₹5,156.00 |
| 2,400+ | ₹11.75 | ₹28,200.00 |
| 5,000+ | ₹11.06 | ₹55,300.00 |
5 × ₹22.85
₹114.25
excl. GST
₹134.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 200 per bag
MX15EDGVC-3.81-10P-GN01-Cu-A
₹114.25 for 5 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x10P
- Number of Pins
- 10P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.81mm
- Connector Type
- Board Side/Socket - Closed
- Color
- Green
- Number of PINs Per Row
- 10
- Termination Style
- Without fixing device
- Mounting Type
- Through Hole
- Number of Rows
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 200 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.02 g
