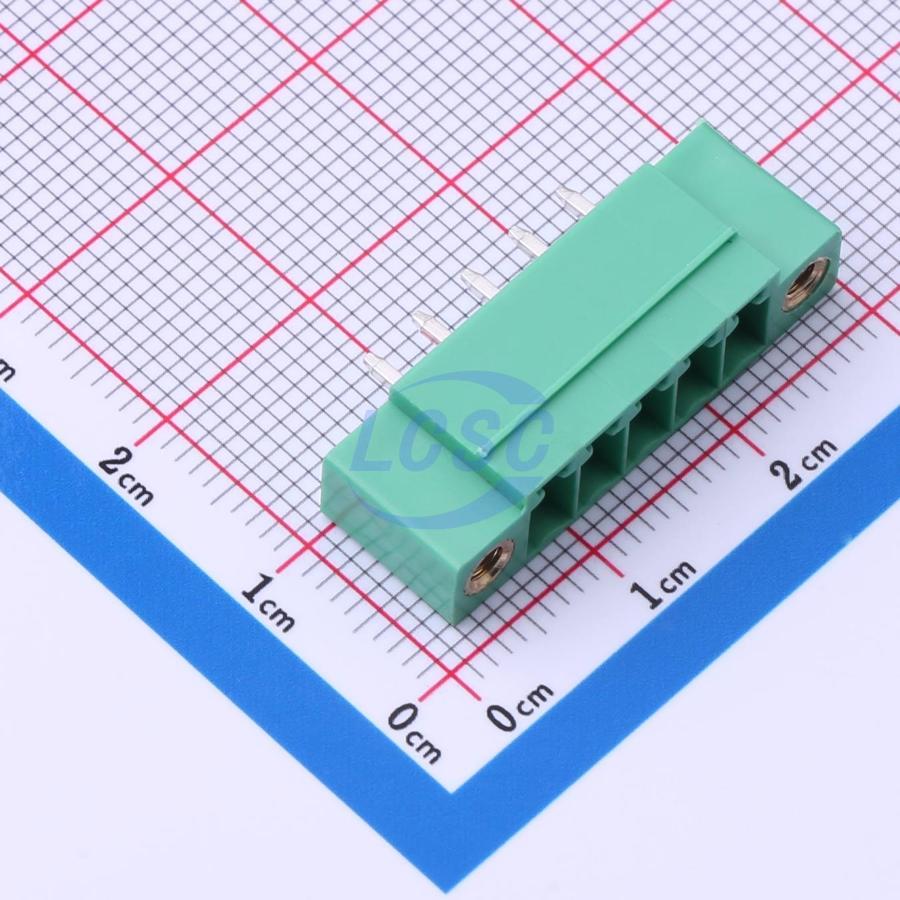

MX15EDGVM-3.5-05P-GN01-Cu-A
5 Position Board Side/Socket - Closed 3.5mm Pitch Straight Pin
Through Hole,P=3.5mmROHS CompliantActive
TERM BLOCK HDR 5POS 3.5mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15EDGVM-3.5-05P-GN01-Cu-A
- Store part #
- C5188361
- Package / case
- Through Hole,P=3.5mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
340 in stock
#C5188361
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.89 | ₹84.45 |
| 50+ | ₹13.44 | ₹672.00 |
| 150+ | ₹11.71 | ₹1,756.50 |
| 400+ | ₹10.41 | ₹4,164.00 |
| 2,400+ | ₹9.38 | ₹22,512.00 |
| 4,800+ | ₹8.86 | ₹42,528.00 |
5 × ₹16.89
₹84.45
excl. GST
₹99.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 400 per bag
MX15EDGVM-3.5-05P-GN01-Cu-A
₹84.45 for 5 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x5P
- Number of Pins
- 5P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.5mm
- Color
- Green
- Connector Type
- Board Side/Socket - Closed
- Number of PINs Per Row
- 5
- Termination Style
- Screw
- Number of Rows
- 1
- Mounting Type
- Through Hole
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 400 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.77 g
