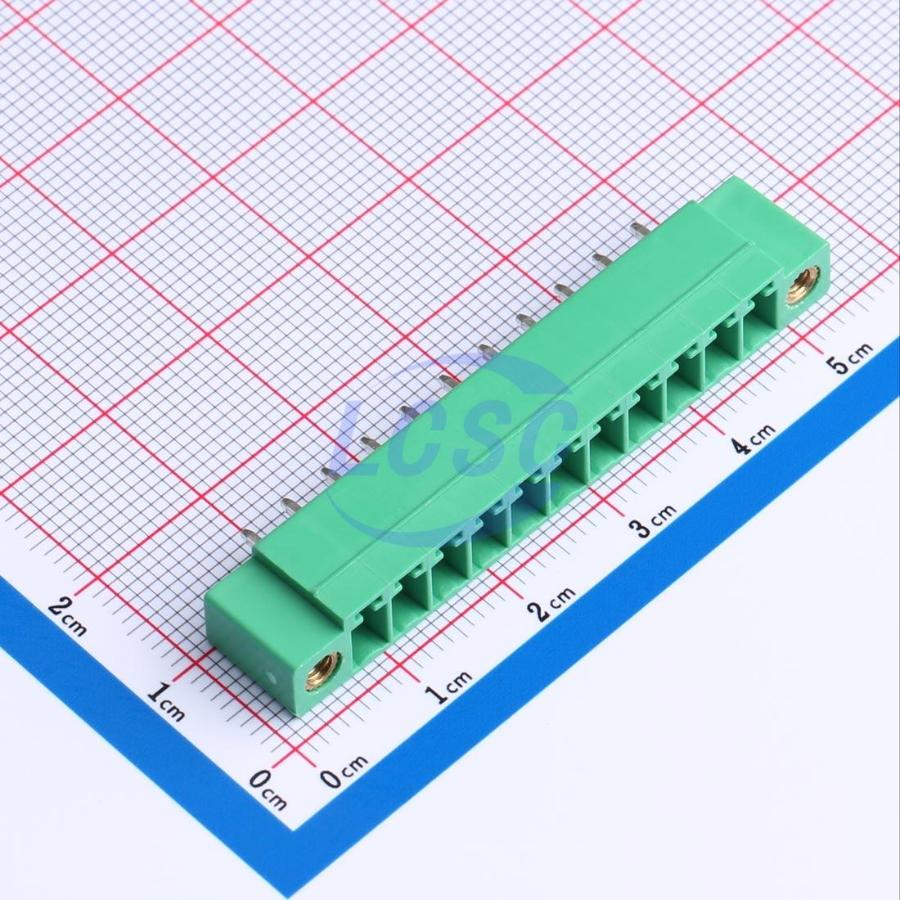

MX15EDGVM-3.81-11P-GN01-Cu-A
11 Position Board Side/Socket - Closed 3.81mm Pitch Straight Pin
Through Hole,P=3.81mmROHS CompliantActive
TERM BLOCK HDR 11POS 3.81mm
- Manufacturer
- MAX
- Manufacturer part #
- MX15EDGVM-3.81-11P-GN01-Cu-A
- Store part #
- C5188235
- Package / case
- Through Hole,P=3.81mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
175 in stock
#C5188235
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.38 | ₹156.90 |
| 50+ | ₹24.82 | ₹1,241.00 |
| 200+ | ₹21.22 | ₹4,244.00 |
| 400+ | ₹17.70 | ₹7,080.00 |
| 2,400+ | ₹16.14 | ₹38,736.00 |
| 5,000+ | ₹15.20 | ₹76,000.00 |
5 × ₹31.38
₹156.90
excl. GST
₹185.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 200 per bag
MX15EDGVM-3.81-11P-GN01-Cu-A
₹156.90 for 5 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x11P
- Number of Pins
- 11P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.81mm
- Color
- Green
- Connector Type
- Board Side/Socket - Closed
- Number of PINs Per Row
- 11
- Termination Style
- Screw
- Number of Rows
- 1
- Mounting Type
- Through Hole
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 200 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 3.05 g
