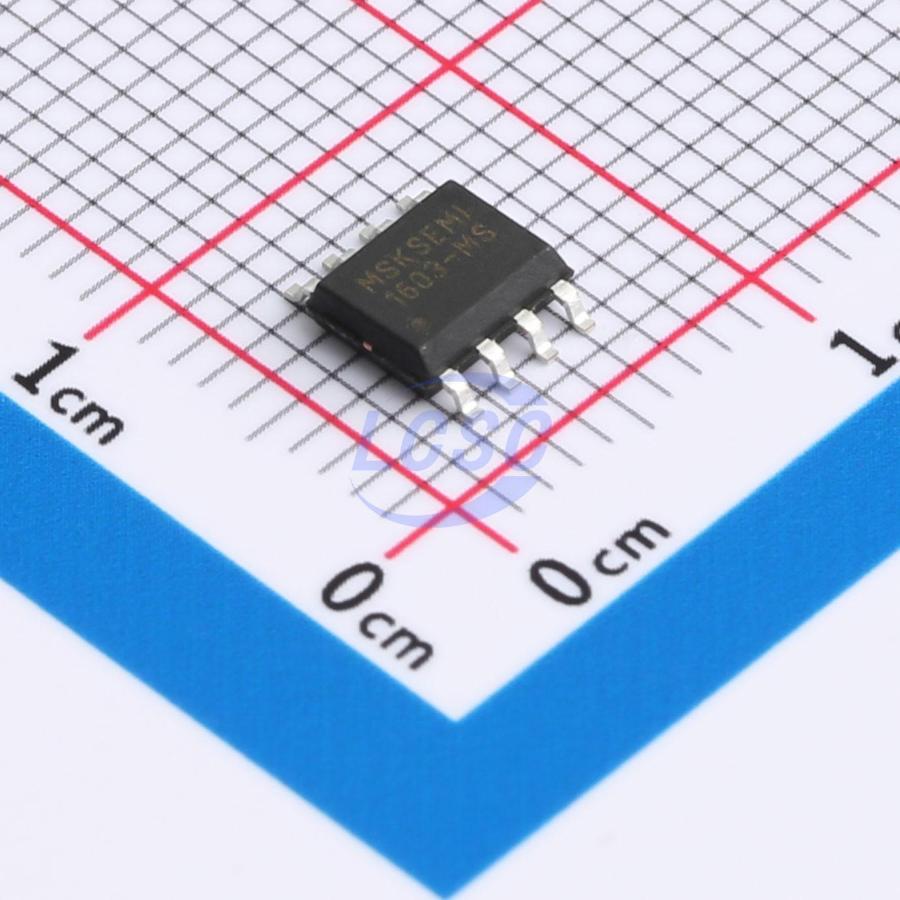

MX1603-MS
3V~18V SOP-8 Motor Drivers, Controllers
DC bidirectional motor drive circuit
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MX1603-MS
- Store part #
- C22462548
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,746 in stock
#C22462548
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.50 | ₹91.50 |
| 10+ | ₹73.72 | ₹737.20 |
| 30+ | ₹64.84 | ₹1,945.20 |
| 100+ | ₹55.95 | ₹5,595.00 |
| 500+ | ₹50.53 | ₹25,265.00 |
| 1,000+ | ₹47.92 | ₹47,920.00 |
1 × ₹91.50
₹91.50
excl. GST
₹107.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MX1603-MS
₹91.50 for 1 + GST
Specifications
- Features
- Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 3V~18V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 1mA
- Output Current
- 5A
- RDS(on)
- 58mΩ;71mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.129 g
Overview
MX1603-MS is a DC bidirectional motor driver IC suitable for toy motor drives, automatic valve motor drives, electromagnetic door lock drives, and similar applications. It features two logic input terminals to control motor forward, reverse, and braking operations. The IC offers excellent noise immunity, ultra-low standby current, and low output on-resistance. Additionally, it incorporates built-in diodes to dissipate reverse surge current from inductive loads. The MX1603-MS comes in a SOP-8 package, complies with RoHS standards, and features a 100% lead-free lead frame.
Applications
- Electronic locks
- Toys
- Wireless charging robots
Key features
- Single brushed DC motor drive
- Ultra-low standby current, less than 1uA
- Low RDS(ON) resistance
- Maximum continuous output current 5.0A
- Operating voltage range: 3.0V - 18V
- Emergency stop function
- Thermal shutdown protection
- Overcurrent limiting and short-circuit protection
- Package: SOP-8
