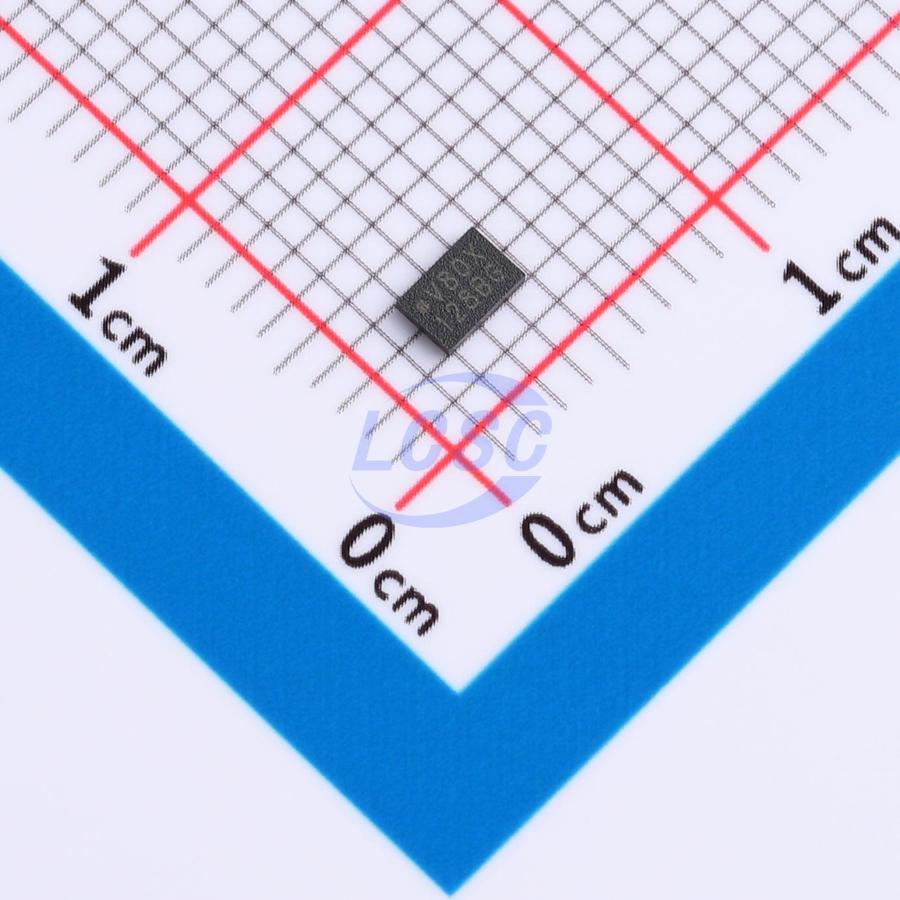

MX25V8035FZUI

MX25V8035F is 8Mb bits Serial NOR Flash memory

Key features

• 2.3V - 3.6V for Read, Erase and Program Operations
• Unique ID and Secure OTP Support
• Multi I/O Support - Single I/O, Dual I/O and Quad I/O
• Program Suspend/Resume & Erase Suspend/Resume
• Supports Serial Peripheral Interface -- Mode 0 and Mode 3
• 8,388,608x1 bit structure or 4,194,304x2 bits (two I/O mode) structure or 2,097,152x4 bits (four I/O mode) structure
• Equal Sectors with 4K byte each, or Equal Blocks with 32K/64K byte each - Any Block can be erased individually
• Single Power Supply Operation - Operation Voltage: 2.3V - 3.6V for Read, Erase and Program Operations
• Latch-up protected to 100mA from -1V to Vcc +1V
• High Performance - Fast read - 1 I/O: 104MHz with 8 dummy cycles - 2 I/O: 104MHz with 4 dummy cycles, equivalent to 208MHz - 4 I/O: 104MHz with 2+4 dummy cycles, equivalent to 416MHz - Fast program and erase time - 8/16/32/64 byte Wrap-Around Burst Read Mode
• Low Power Consumption
• Minimum 100,000 erase/program cycles
• 20 years data retention
• Input Data Format - 1-byte Command code
• Advanced Security Features - Block lock protection The BP0 - BP3 status bit defines the size of the area to be software protection against program and erase instructions
• Additional 8K bits secured OTP - Features unique identifier. - Factory locked identifiable and customer lockable
• Auto Erase and Auto Program Algorithm - Automatically erases and verifies data at selected sector or block - Automatically programs and verifies data at selected page by an internal algorithm that automatically times the program pulse widths (Any page to be programed should have page in the erased state first)
• Status Register Feature
• Command Reset
• Program/Erase Suspend and Program/Erase Resume
• Electronic Identification - JEDEC 1-byte manufacturer ID and 2-byte device ID - RES command for 1-byte Device ID - REMS command for 1-byte manufacturer ID and 1-byte device ID
• Support Serial Flash Discoverable Parameters (SFDP) mode
• Support Unique ID
• SCLK Input - Serial clock input
• SI/SIO0 - Serial Data Input or Serial Data Input/Output for 2x1/0 read mode and 4x1/0 read mode
• SO/SIO1 - Serial Data Output or Serial Data Input/Output for 2x1/0 read mode and 4x1/0 read mode
• WP#/SIO2 - Hardware write protection or serial data Input/Output for 4x1/0 read mode
• HOLD#/SIO3 - HOLD feature, to pause the device without deselecting the device or Serial input & Output for 4x1/0 read mode
• PACKAGE - 8-pin SOP (150mil/200mil) - 8-land USON (2x3mm) - 8-land WSON (6x5mm) - All devices are RoHS Compliant and Halogen-free
