MX27524ES

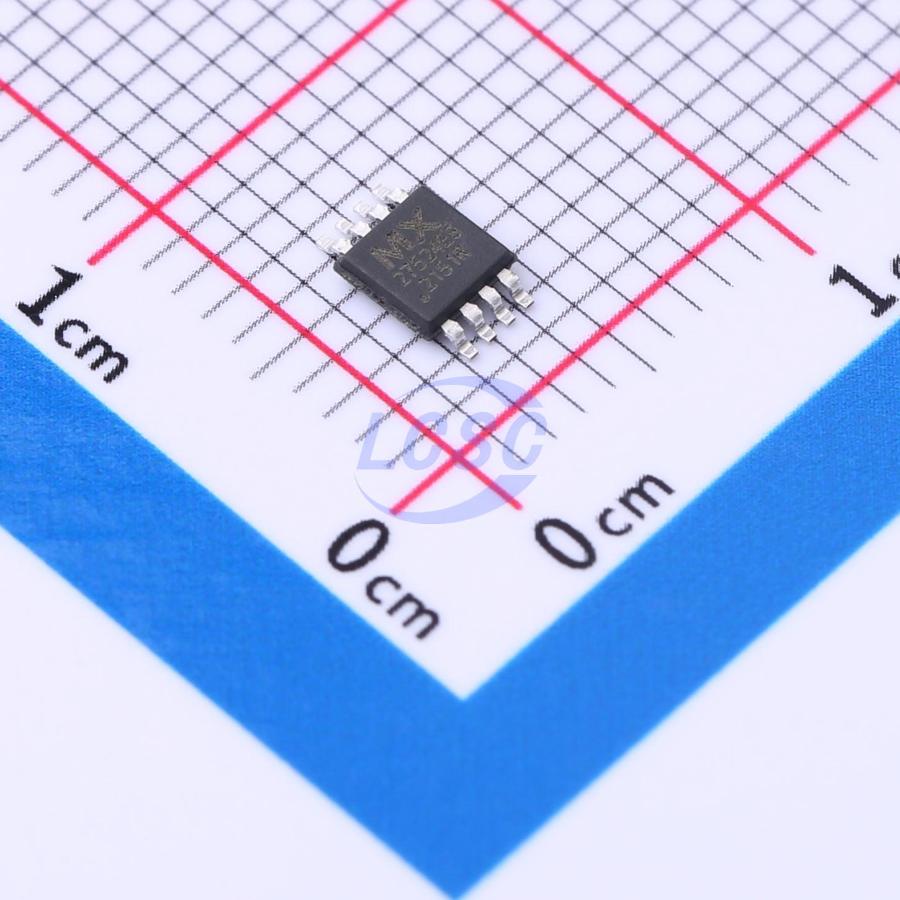

4.5V~18V 5A 5A EMSOP-8 Gate Drivers RoHS
5A Peak Current Dual Channels Low Side Gate Driver
- Manufacturer
- Wuxi Maxinmicro
- Manufacturer part #
- MX27524ES
- Store part #
- C5341118
- Package / case
- EMSOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,110 in stock
#C5341118
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.07 | ₹100.35 |
| 50+ | ₹15.90 | ₹795.00 |
| 150+ | ₹13.83 | ₹2,074.50 |
| 500+ | ₹12.25 | ₹6,125.00 |
| 2,500+ | ₹11.01 | ₹27,525.00 |
| 4,000+ | ₹10.39 | ₹41,560.00 |
5 × ₹20.07
₹100.35
excl. GST
₹118.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MX27524ES
₹100.35 for 5 + GST
Specifications
- Input Logic Level - Low
- 900mV~1.5V
- Low Level Delay Time
- 15ns
- High Level Delay Time
- 15ns
- Quiescent Current
- 1mA
- Input Logic Level - High
- 1.8V~2.4V
- Voltage - Supply
- 4.5V~18V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 5A
- Rise Time
- 7ns
- Fall Time
- 7ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 5A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.065 g
Overview
The MX27524 is a dual, high current, low side gate driver. Each of the two outputs is capable of sourcing and sinking 5A peak current, and has a maximum voltage rating of 20V. Each channel has dual independent enable pins that default to ON if not connected. Fast propagation delay times and fast rise and fall times make the MX27524 well suited for high frequency applications. In addition, the drivers feature matched internal propagation delays between A and B channels for applications requiring dual gate drivers with critical timing, such as synchronous rectifier.
Applications
- Pulse laser for distance test
- Battery management systems
- DC-DC converters
- Motor controllers
- Power inverters
- Synchronous rectifier circuits
Key features
- Two independent drivers, each capable of sourcing and sinking 5A
- CMOS and TTL compatible inputs
- Independent enable for each channel
- -40°C to +125°C extended operating temperature range
- ±4kV ESD rating (Human Body Model)
- Thermally enhanced 8-pin MSOP package and standard 8-pin SOP package
- Internal under voltage lockout circuitry
- Fast INX propagation delays (15ns typical)
- Fast rise and fall times (7ns typical and 1.8nF load)
- Propagation delay matching (5ns MAX)
- These are Pb-free device
