MAXDatasheet (PDF)

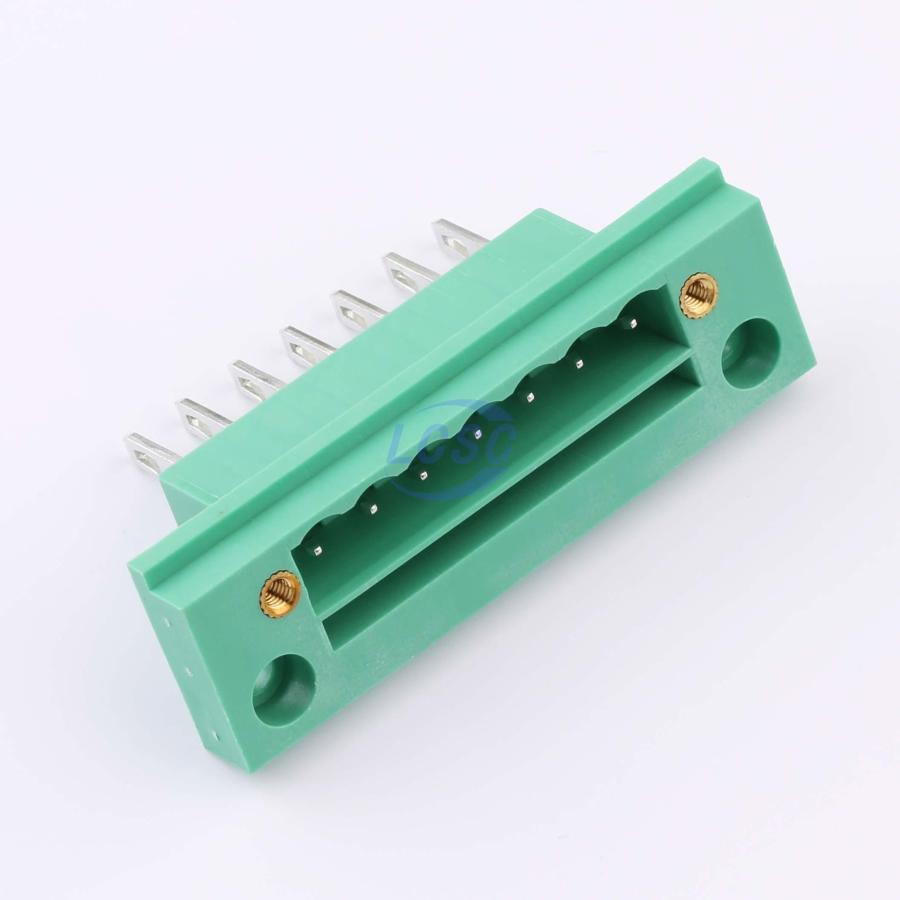

MX2CDGM-5.08-07P-GN01-Cu-A
7 Position Feed Through 5.08mm Pitch
P=5.08mmROHS CompliantActive
Feed Through 7POS 5.08mm
- Manufacturer
- MAX
- Manufacturer part #
- MX2CDGM-5.08-07P-GN01-Cu-A
- Store part #
- C48688163
- Package / case
- P=5.08mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C48688163
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.17 | ₹111.17 |
| 10+ | ₹88.85 | ₹888.50 |
| 60+ | ₹77.91 | ₹4,674.60 |
| 120+ | ₹66.75 | ₹8,010.00 |
| 480+ | ₹60.09 | ₹28,843.20 |
| 1,020+ | ₹56.66 | ₹57,793.20 |
1 × ₹111.17
₹111.17
excl. GST
₹131.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 60 per bag
MX2CDGM-5.08-07P-GN01-Cu-A
₹111.17 for 1 + GST
Specifications
- Current Rating
- 15A
- Number of Positions or Pins
- 1x7P
- Number of Pins
- 7P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 5.08mm
- Connector Type
- Feed Through
- Color
- Green
- Number of PINs Per Row
- 7
- Mounting Type
- Panel Mount
- Termination Style
- Screw
- Number of Rows
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 60 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.532 g
