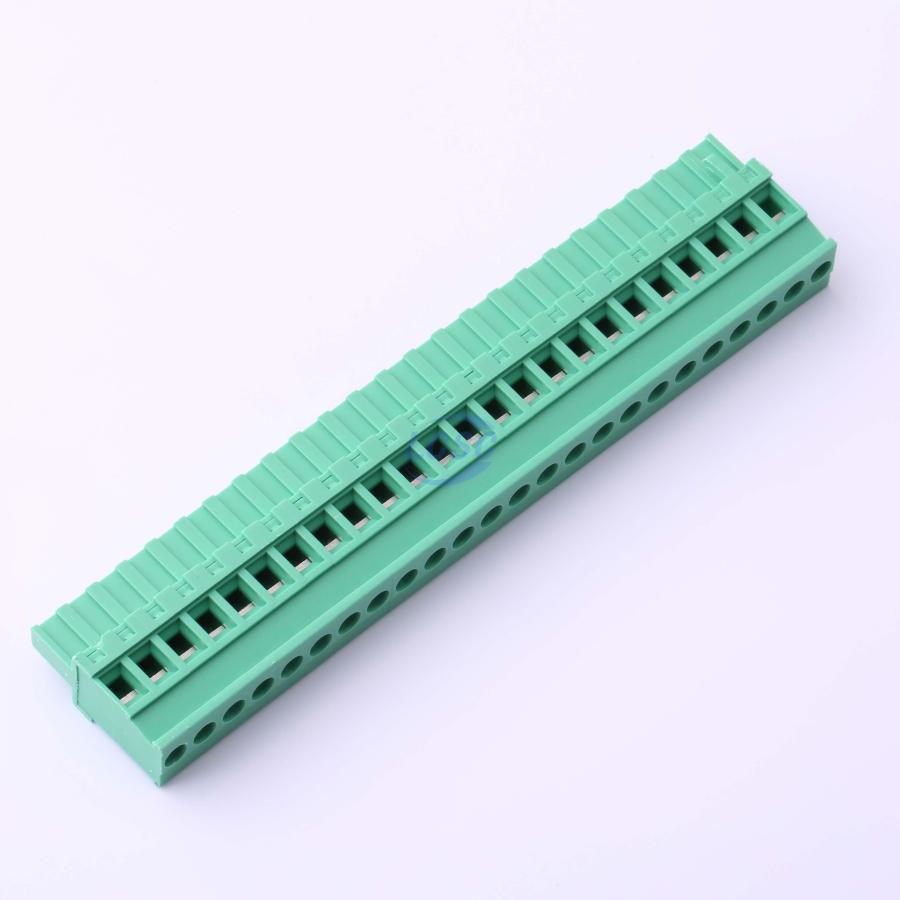

MX2EDGKA-5.08-24P-GN01-Cu-Y-A MAX
MAX

MX2EDGKA-5.08-24P-GN01-Cu-Y-A

24 Position 5.08mm Pitch

Through Hole,P=5.08mmROHS CompliantActive

24POS 5.08mm

Manufacturer
MAX
Manufacturer part #
MX2EDGKA-5.08-24P-GN01-Cu-Y-A
Store part #
C7427474
Package / case
Through Hole,P=5.08mm
Category
Headers, Plugs and Sockets
Packaging
Box-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

186 in stock

#C7427474

Stock & price checked 6 days ago

QuantityUnit pricePack price
1+₹238.85₹238.85
10+₹219.54₹2,195.40
30+₹207.31₹6,219.30
115+₹194.86₹22,408.90
460+₹189.28₹87,068.80
1,035+₹186.93₹1,93,472.55

1 × ₹238.85

₹238.85

excl. GST

₹281.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 115 per box

MX2EDGKA-5.08-24P-GN01-Cu-Y-A

₹238.85 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
1~2.5
Wire Gauge - AWG
12~28
Number of Positions or Pins
1x24P
Number of Pins
24P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
24
Number of Rows
1
Current Rating
15A
Outlet Direction (Vertical Basis)
Horizontal Termination
Connection Type
Screw Connection (M2.5)
Voltage Rating
300V
Pitch
5.08mm
Connector Type
Male Plug
Color
Green
Mounting Type
Free-hanging
Termination Style
Without fixing device

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Box-packed
Standard pack
115 / Box
Sold per
Piece
Minimum order
1
Unit weight
41.6 g
