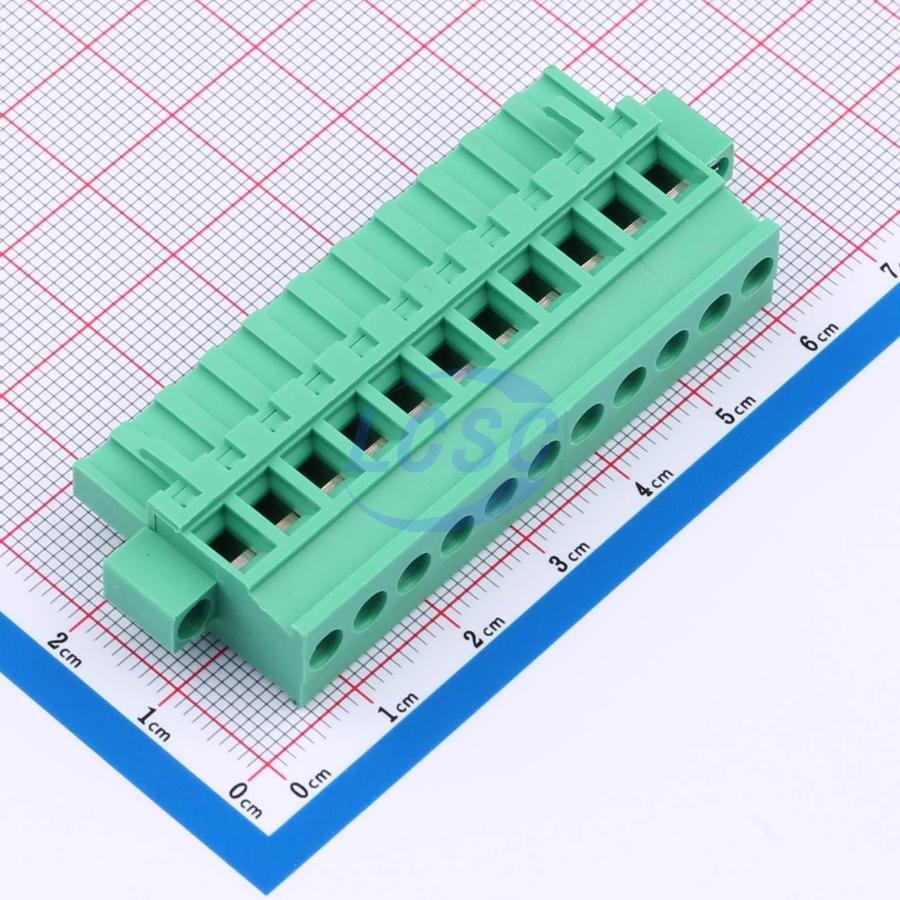

MX2EDGKAM-5.08-11P-GN01-Cu-Y-A MAX
MAX

MX2EDGKAM-5.08-11P-GN01-Cu-Y-A

12~28 1x11P 11P -40℃~+105℃ 11 1 15A 5.08mm Male Plug Green Free-hanging Screw Through Hole,P=5.08mm Headers, Plugs and Sockets RoHS

Through Hole,P=5.08mmROHS CompliantActive
Manufacturer
MAX
Manufacturer part #
MX2EDGKAM-5.08-11P-GN01-Cu-Y-A
Store part #
C19184592
Package / case
Through Hole,P=5.08mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

200 in stock

#C19184592

Stock & price checked 5 days ago

QuantityUnit pricePack price
1+₹181.78₹181.78
10+₹150.37₹1,503.70
50+₹133.11₹6,655.50
100+₹113.57₹11,357.00
500+₹104.82₹52,410.00
1,000+₹100.88₹1,00,880.00

1 × ₹181.78

₹181.78

excl. GST

₹214.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 50 per bag

MX2EDGKAM-5.08-11P-GN01-Cu-Y-A

₹181.78 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - AWG
12~28
Number of Positions or Pins
1x11P
Number of Pins
11P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
11
Number of Rows
1
Current Rating
15A
Connection Type
Screw Connection (M2.5)
Voltage Rating
300V
Pitch
5.08mm
Connector Type
Male Plug
Color
Green
Mounting Type
Free-hanging
Termination Style
Screw

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
50 / Bag
Sold per
Piece
Minimum order
1
Unit weight
19.882 g
