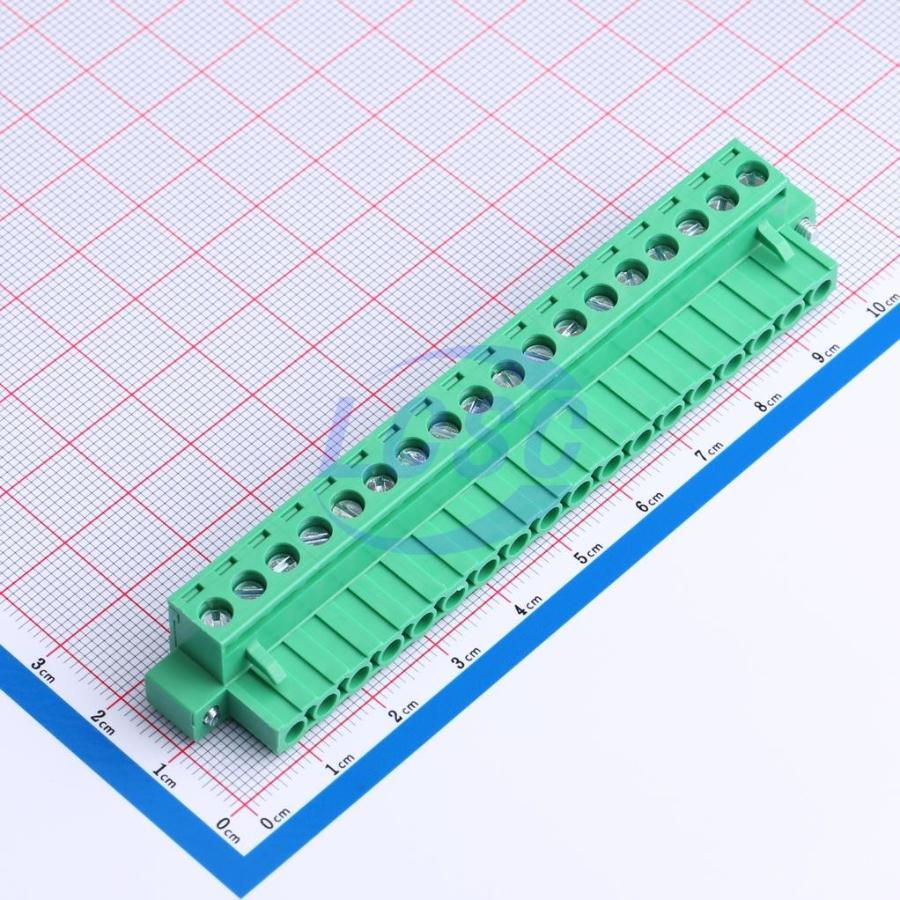

MX2EDGKM-5.08-18P-GN01-Cu-Y-A MAX
MAX

MX2EDGKM-5.08-18P-GN01-Cu-Y-A

18 Position 5.08mm Pitch

P=5.08mmROHS CompliantActive

18POS 5.08mm

Manufacturer
MAX
Manufacturer part #
MX2EDGKM-5.08-18P-GN01-Cu-Y-A
Store part #
C5187971
Package / case
P=5.08mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

80 in stock

#C5187971

Stock & price checked 9 days ago

QuantityUnit pricePack price
1+₹159.21₹159.21
10+₹132.46₹1,324.60
25+₹117.67₹2,941.75
100+₹96.79₹9,679.00
500+₹89.40₹44,700.00
1,000+₹85.92₹85,920.00

1 × ₹159.21

₹159.21

excl. GST

₹187.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 25 per bag

MX2EDGKM-5.08-18P-GN01-Cu-Y-A

₹159.21 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
2.5
Wire Gauge - AWG
12~24
Number of Positions or Pins
1x18P
Number of Pins
18P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
18
Number of Rows
1
Current Rating
15A
Outlet Direction (Vertical Basis)
Horizontal Termination
Connection Type
Screw Connection (M2.5)
Voltage Rating
300V
Pitch
5.08mm
Color
Green
Connector Type
Male Plug
Mounting Type
Free-hanging
Termination Style
Screw

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
25 / Bag
Sold per
Piece
Minimum order
1
Unit weight
26.68 g
