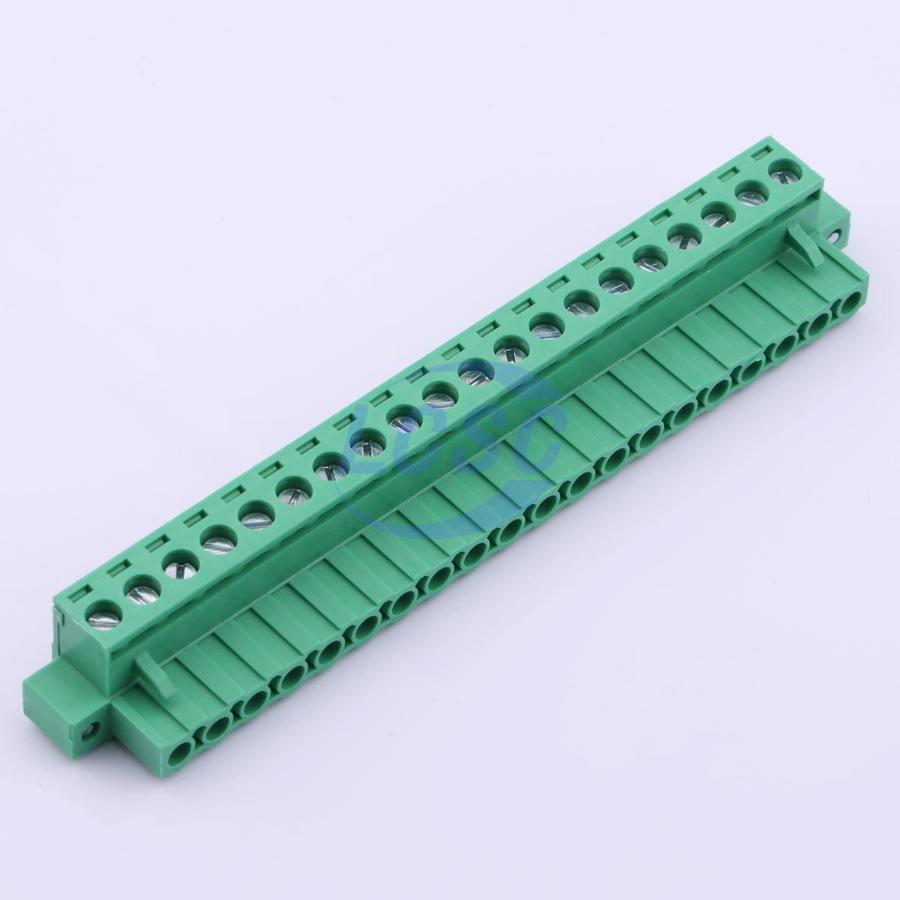

MX2EDGKM-5.08-20P-GN01-Cu-Y-A MAX
MAX

MX2EDGKM-5.08-20P-GN01-Cu-Y-A

20 Position 5.08mm Pitch

P=5.08mmROHS CompliantActive

20POS 5.08mm

Manufacturer
MAX
Manufacturer part #
MX2EDGKM-5.08-20P-GN01-Cu-Y-A
Store part #
C5188520
Package / case
P=5.08mm
Category
Headers, Plugs and Sockets
Packaging
Box-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

136 in stock

#C5188520

Stock & price checked 4 days ago

QuantityUnit pricePack price
1+₹175.40₹175.40
10+₹145.93₹1,459.30
30+₹129.67₹3,890.10
170+₹106.46₹18,098.20
510+₹98.44₹50,204.40
1,020+₹94.75₹96,645.00

1 × ₹175.40

₹175.40

excl. GST

₹206.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 170 per box

MX2EDGKM-5.08-20P-GN01-Cu-Y-A

₹175.40 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
2.5
Wire Gauge - AWG
12~24
Number of Positions or Pins
1x20P
Number of Pins
20P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
20
Number of Rows
1
Current Rating
15A
Outlet Direction (Vertical Basis)
Horizontal Termination
Connection Type
Screw Connection (M2.5)
Voltage Rating
300V
Pitch
5.08mm
Color
Green
Connector Type
Male Plug
Mounting Type
Free-hanging
Termination Style
Screw

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Box-packed
Standard pack
170 / Box
Sold per
Piece
Minimum order
1
Unit weight
29.16 g
