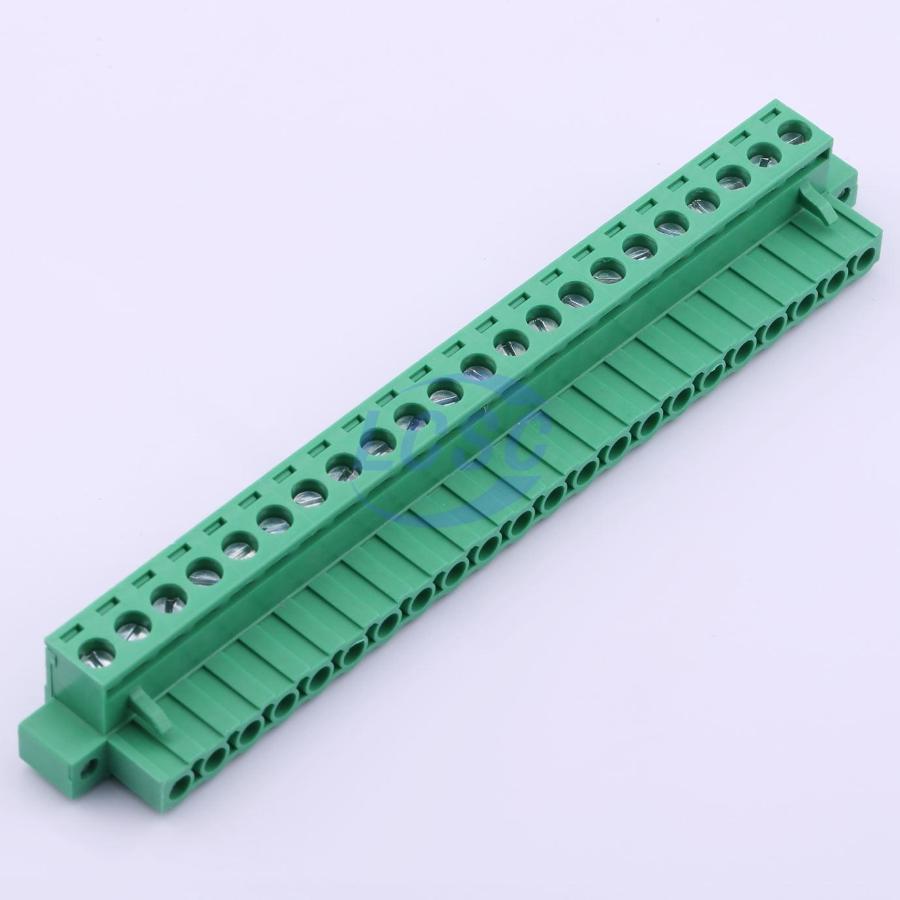

MX2EDGKM-5.08-22P-GN01-Cu-Y-A MAX
MAX

MX2EDGKM-5.08-22P-GN01-Cu-Y-A

22 Position 5.08mm Pitch

P=5.08mmROHS CompliantActive

22POS 5.08mm

Manufacturer
MAX
Manufacturer part #
MX2EDGKM-5.08-22P-GN01-Cu-Y-A
Store part #
C5188522
Package / case
P=5.08mm
Category
Headers, Plugs and Sockets
Packaging
Box-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

150 in stock

#C5188522

Stock & price checked 2 days ago

QuantityUnit pricePack price
1+₹200.33₹200.33
10+₹167.92₹1,679.20
30+₹150.08₹4,502.40
150+₹124.63₹18,694.50
450+₹115.71₹52,069.50
1,050+₹111.58₹1,17,159.00

1 × ₹200.33

₹200.33

excl. GST

₹236.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 150 per box

MX2EDGKM-5.08-22P-GN01-Cu-Y-A

₹200.33 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
2.5
Wire Gauge - AWG
12~24
Number of Positions or Pins
1x22P
Number of Pins
22P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
22
Number of Rows
1
Current Rating
15A
Outlet Direction (Vertical Basis)
Horizontal Termination
Connection Type
Screw Connection (M2.5)
Voltage Rating
300V
Pitch
5.08mm
Color
Green
Connector Type
Male Plug
Mounting Type
Free-hanging
Termination Style
Screw

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Box-packed
Standard pack
150 / Box
Sold per
Piece
Minimum order
1
Unit weight
32 g
