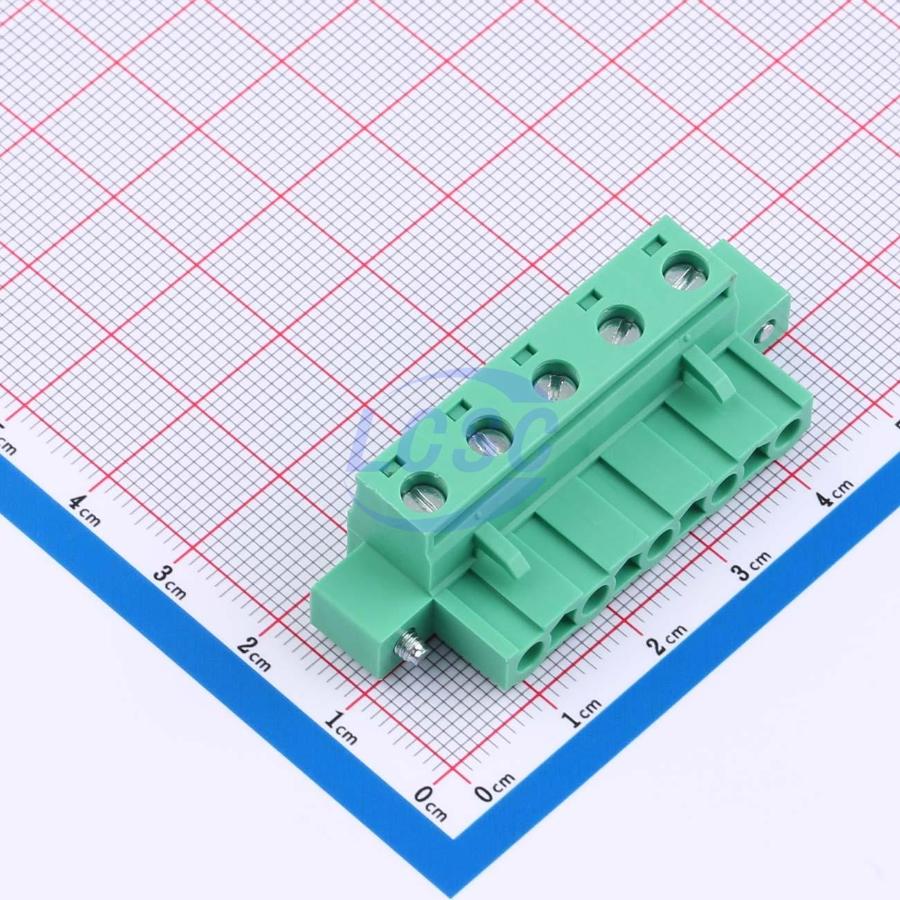

MX2EDGKM-7.62-05P-GN01-Cu-Y-A MAX
MAX

MX2EDGKM-7.62-05P-GN01-Cu-Y-A

5 Position Plug 7.62mm Pitch

P=7.62mmROHS CompliantActive

TERM BLOCK PLUG 5POS 7.62mm

Manufacturer
MAX
Manufacturer part #
MX2EDGKM-7.62-05P-GN01-Cu-Y-A
Store part #
C48688188
Package / case
P=7.62mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

157 in stock

#C48688188

Stock & price checked 3 days ago

QuantityUnit pricePack price
1+₹111.94₹111.94
10+₹90.65₹906.50
30+₹80.02₹2,400.60
100+₹69.58₹6,958.00
500+₹63.24₹31,620.00
1,000+₹59.96₹59,960.00

1 × ₹111.94

₹111.94

excl. GST

₹132.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 100 per bag

MX2EDGKM-7.62-05P-GN01-Cu-Y-A

₹111.94 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
0.2~2.5
Wire Gauge - AWG
12~28
Number of Positions or Pins
1x5P
Number of Pins
5P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
5
Number of Rows
1
Current Rating
15A
Outlet Direction (Vertical Basis)
Top Entry
Connection Type
Screw Connection (M2.5)
Voltage Rating
300V
Pitch
7.62mm
Color
Green
Connector Type
Male Plug
Mounting Type
Free-hanging
Termination Style
Screw

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Moisture sensitivity
MSL 2 (1 year)
Packaging
Bag-packed
Standard pack
100 / Bag
Sold per
Piece
Minimum order
1
Unit weight
9.219 g
