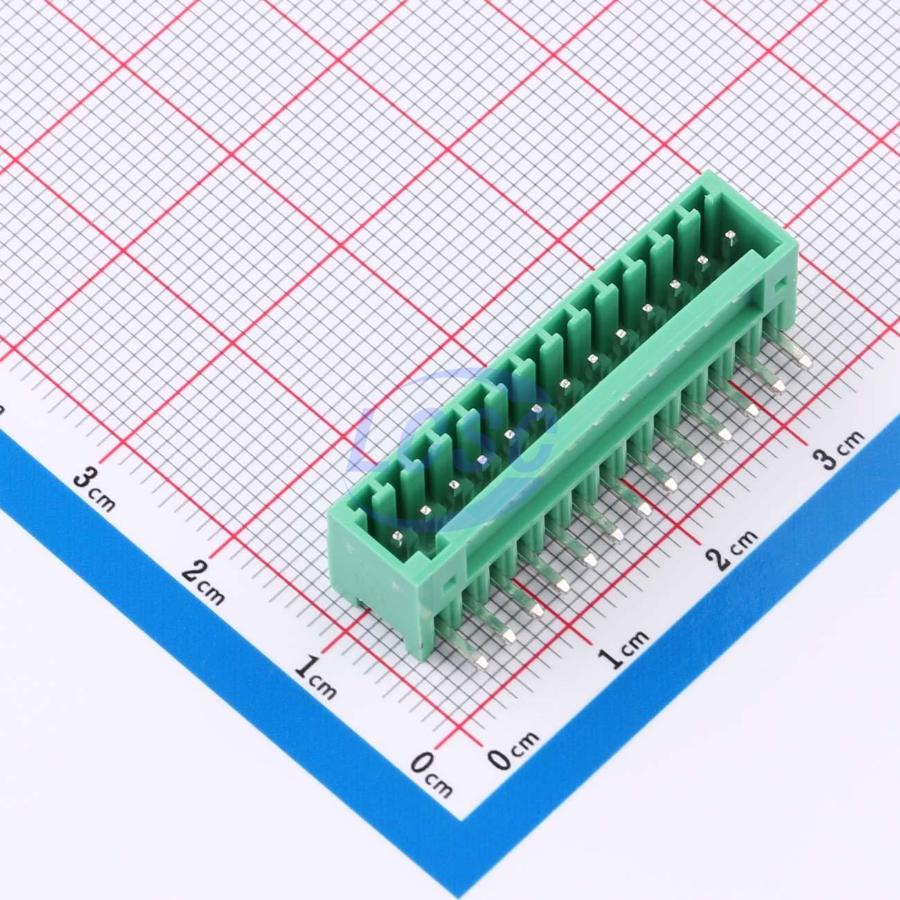

MX2EDGR-2.5-13P-GN01-Cu-A
13 Position Board Side/Socket - Closed 2.5mm Pitch Right-Angle Pin
Through Hole,Right Angle,P=2.5mmROHS CompliantActive
TERM BLOCK HDR 13POS 2.5mm
- Manufacturer
- MAX
- Manufacturer part #
- MX2EDGR-2.5-13P-GN01-Cu-A
- Store part #
- C48688202
- Package / case
- Through Hole,Right Angle,P=2.5mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C48688202
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.62 | ₹63.62 |
| 10+ | ₹50.46 | ₹504.60 |
| 30+ | ₹44.57 | ₹1,337.10 |
| 200+ | ₹37.48 | ₹7,496.00 |
| 400+ | ₹34.45 | ₹13,780.00 |
| 1,000+ | ₹32.43 | ₹32,430.00 |
1 × ₹63.62
₹63.62
excl. GST
₹75.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 200 per bag
MX2EDGR-2.5-13P-GN01-Cu-A
₹63.62 for 1 + GST
Specifications
- Current Rating
- 5A
- Number of Positions or Pins
- 1x13P
- Number of Pins
- 13P
- Voltage Rating
- 150V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 2.5mm
- Color
- Green
- Connector Type
- Board Side/Socket - Closed
- Number of PINs Per Row
- 13
- Termination Style
- Without fixing device
- Number of Rows
- 1
- Mounting Type
- Right-Angle
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Bag-packed
- Standard pack
- 200 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.555 g
