Varnitronics
Quote

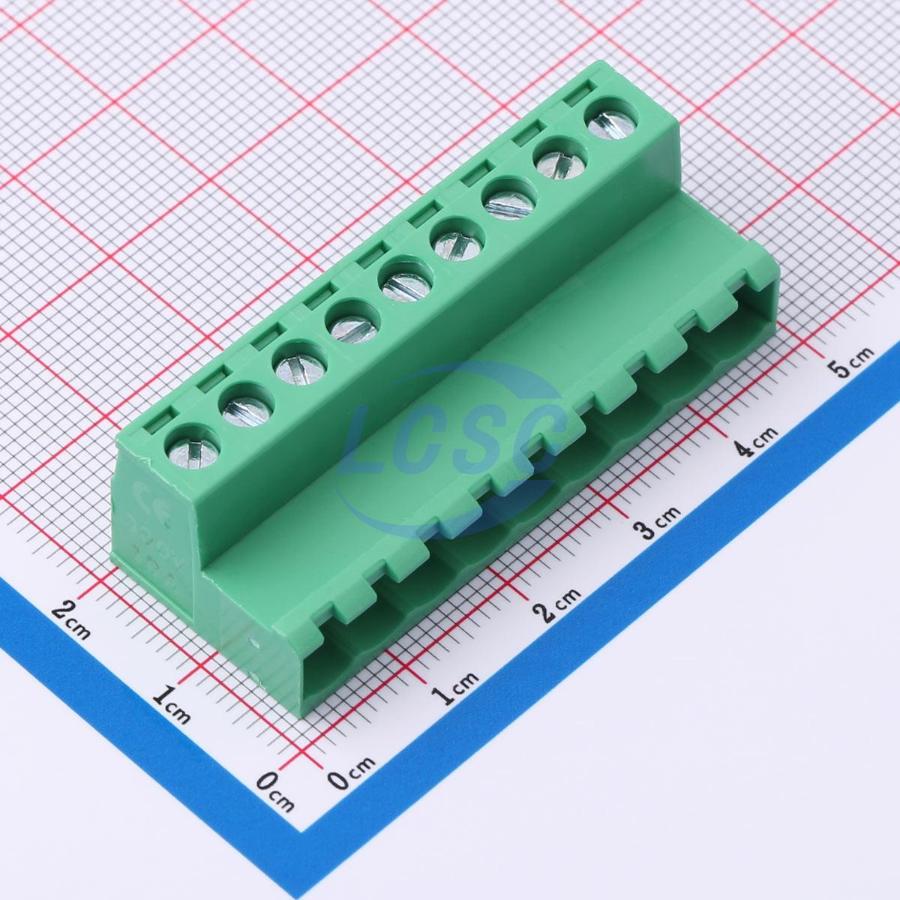

MX2EDGRK-5.08-09P-GN01-Cu-Y-A MAX
MAX

MX2EDGRK-5.08-09P-GN01-Cu-Y-A

9 Position 5.08mm Pitch

P=5.08mmROHS CompliantActive

9POS 5.08mm

Manufacturer
MAX
Manufacturer part #
MX2EDGRK-5.08-09P-GN01-Cu-Y-A
Store part #
C5188388
Package / case
P=5.08mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

88 in stock

#C5188388

Stock & price checked 9 days ago

QuantityUnit pricePack price
1+₹131.98₹131.98
10+₹106.87₹1,068.70
50+₹94.44₹4,722.00
100+₹81.99₹8,199.00
500+₹74.68₹37,340.00
1,000+₹70.82₹70,820.00

1 × ₹131.98

₹131.98

excl. GST

₹155.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 50 per bag

MX2EDGRK-5.08-09P-GN01-Cu-Y-A

₹131.98 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
2.5
Wire Gauge - AWG
12~28
Number of Positions or Pins
1x9P
Number of Pins
9P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
9
Number of Rows
1
Current Rating
10A
Outlet Direction (Vertical Basis)
Top Entry
Connection Type
Screw Connection (M2.5)
Voltage Rating
300V
Pitch
5.08mm
Connector Type
Female Plug
Color
Green
Mounting Type
Free-hanging
Termination Style
Without fixing device

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
50 / Bag
Sold per
Piece
Minimum order
1
Unit weight
13.54 g
