MAXDatasheet (PDF)

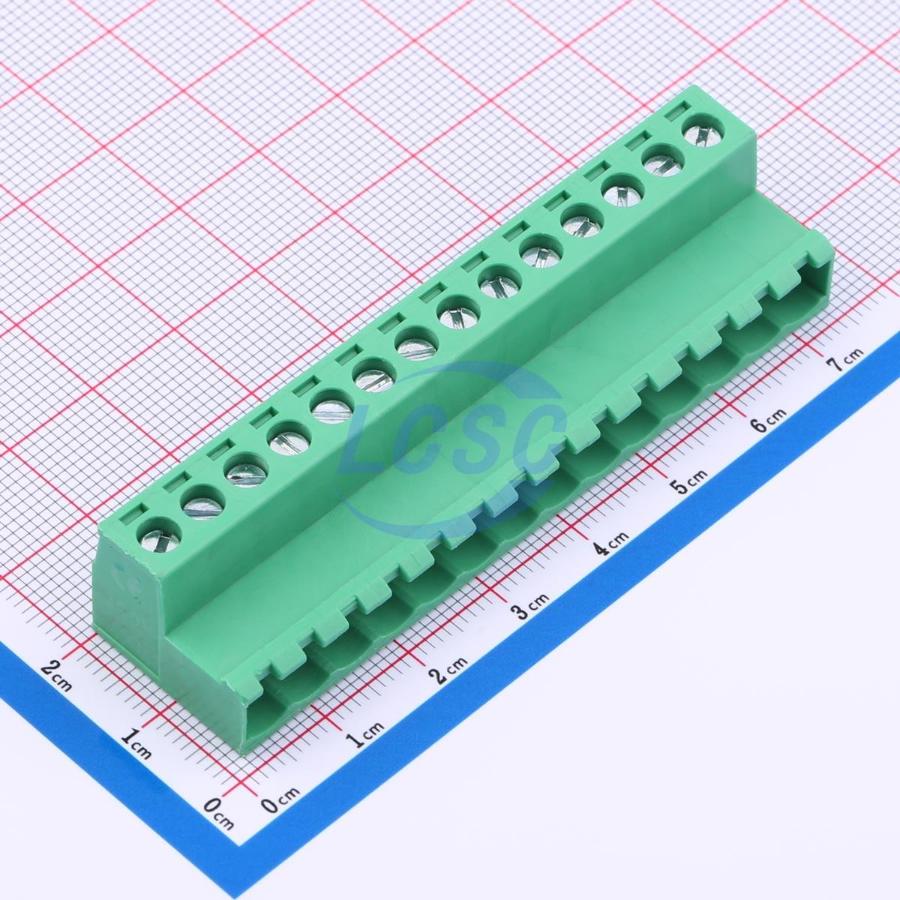

MX2EDGRK-5.08-14P-GN01-Cu-Y-A
14 Position 5.08mm Pitch
P=5.08mmROHS CompliantActive
14POS 5.08mm
- Manufacturer
- MAX
- Manufacturer part #
- MX2EDGRK-5.08-14P-GN01-Cu-Y-A
- Store part #
- C5188393
- Package / case
- P=5.08mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
233 in stock
#C5188393
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹193.58 | ₹193.58 |
| 10+ | ₹161.06 | ₹1,610.60 |
| 50+ | ₹143.20 | ₹7,160.00 |
| 100+ | ₹122.96 | ₹12,296.00 |
| 500+ | ₹113.91 | ₹56,955.00 |
| 1,000+ | ₹109.82 | ₹1,09,820.00 |
1 × ₹193.58
₹193.58
excl. GST
₹228.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per bag
MX2EDGRK-5.08-14P-GN01-Cu-Y-A
₹193.58 for 1 + GST
Specifications
- Wire Gauge - mm2
- 2.5
- Wire Gauge - AWG
- 12~28
- Number of Positions or Pins
- 1x14P
- Number of Pins
- 14P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 14
- Number of Rows
- 1
- Current Rating
- 10A
- Outlet Direction (Vertical Basis)
- Top Entry
- Connection Type
- Screw Connection (M2.5)
- Voltage Rating
- 300V
- Pitch
- 5.08mm
- Connector Type
- Female Plug
- Color
- Green
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 50 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 20.52 g
