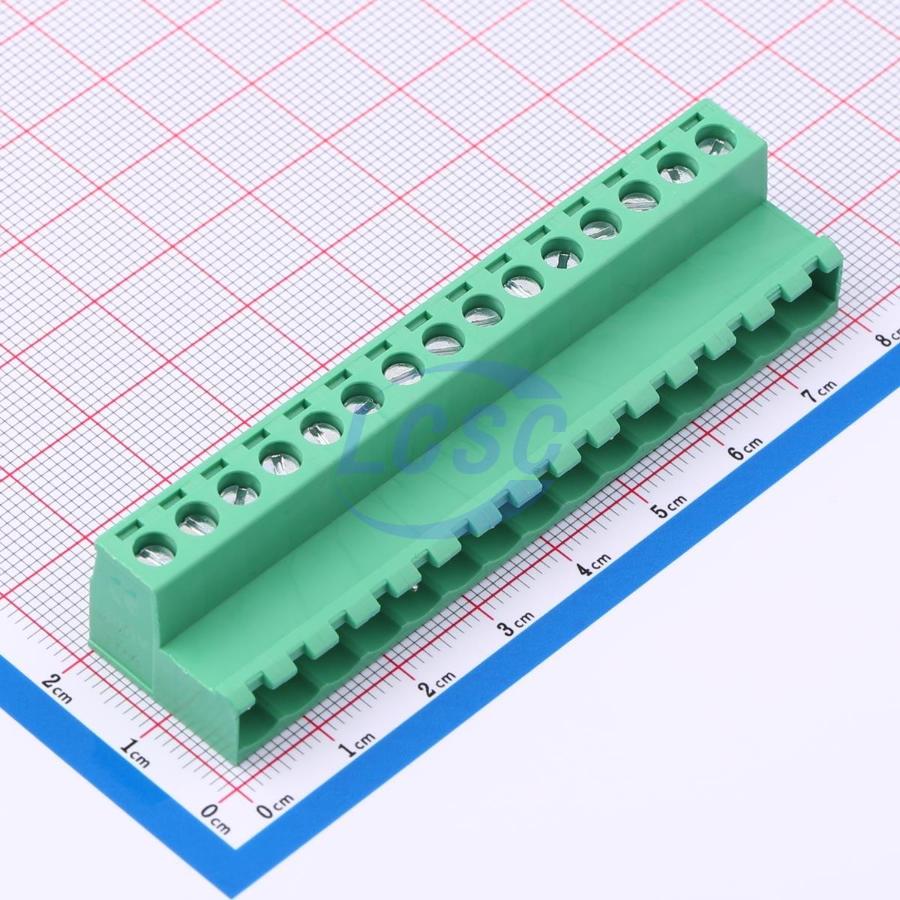

MX2EDGRK-5.08-15P-GN01-Cu-Y-A MAX
MAX

MX2EDGRK-5.08-15P-GN01-Cu-Y-A

15 Position 5.08mm Pitch

P=5.08mmROHS CompliantActive

15POS 5.08mm

Manufacturer
MAX
Manufacturer part #
MX2EDGRK-5.08-15P-GN01-Cu-Y-A
Store part #
C5188394
Package / case
P=5.08mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

78 in stock

#C5188394

Stock & price checked 10 days ago

QuantityUnit pricePack price
1+₹206.67₹206.67
10+₹171.90₹1,719.00
50+₹152.81₹7,640.50
100+₹131.35₹13,135.00
500+₹121.69₹60,845.00
1,000+₹117.39₹1,17,390.00

1 × ₹206.67

₹206.67

excl. GST

₹243.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 50 per bag

MX2EDGRK-5.08-15P-GN01-Cu-Y-A

₹206.67 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
2.5
Wire Gauge - AWG
12~28
Number of Positions or Pins
1x15P
Number of Pins
15P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
15
Number of Rows
1
Current Rating
10A
Outlet Direction (Vertical Basis)
Top Entry
Connection Type
Screw Connection (M2.5)
Voltage Rating
300V
Pitch
5.08mm
Connector Type
Female Plug
Color
Green
Mounting Type
Free-hanging
Termination Style
Without fixing device

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
50 / Bag
Sold per
Piece
Minimum order
1
Unit weight
22.16 g
