MAXDatasheet (PDF)

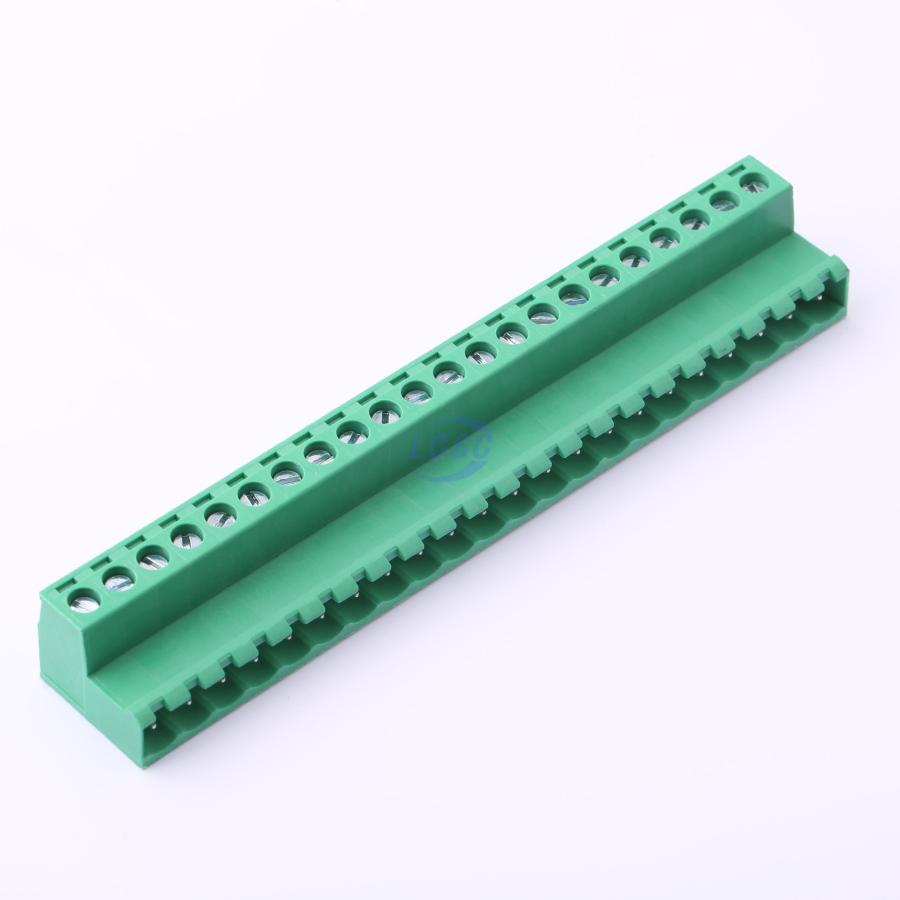

MX2EDGRK-5.08-22P-GN01-Cu-Y-A
22 Position 5.08mm Pitch
P=5.08mmROHS CompliantActive
22POS 5.08mm
- Manufacturer
- MAX
- Manufacturer part #
- MX2EDGRK-5.08-22P-GN01-Cu-Y-A
- Store part #
- C5188527
- Package / case
- P=5.08mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
218 in stock
#C5188527
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹218.90 | ₹218.90 |
| 10+ | ₹201.08 | ₹2,010.80 |
| 30+ | ₹190.14 | ₹5,704.20 |
| 130+ | ₹178.55 | ₹23,211.50 |
| 520+ | ₹173.62 | ₹90,282.40 |
| 1,040+ | ₹171.26 | ₹1,78,110.40 |
1 × ₹218.90
₹218.90
excl. GST
₹258.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 130 per box
MX2EDGRK-5.08-22P-GN01-Cu-Y-A
₹218.90 for 1 + GST
Specifications
- Wire Gauge - mm2
- 2.5
- Wire Gauge - AWG
- 12~28
- Number of Positions or Pins
- 1x22P
- Number of Pins
- 22P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 22
- Number of Rows
- 1
- Current Rating
- 10A
- Outlet Direction (Vertical Basis)
- Top Entry
- Connection Type
- Screw Connection (M2.5)
- Voltage Rating
- 300V
- Pitch
- 5.08mm
- Connector Type
- Female Plug
- Color
- Green
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Box-packed
- Standard pack
- 130 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 32.7 g
