MAXDatasheet (PDF)

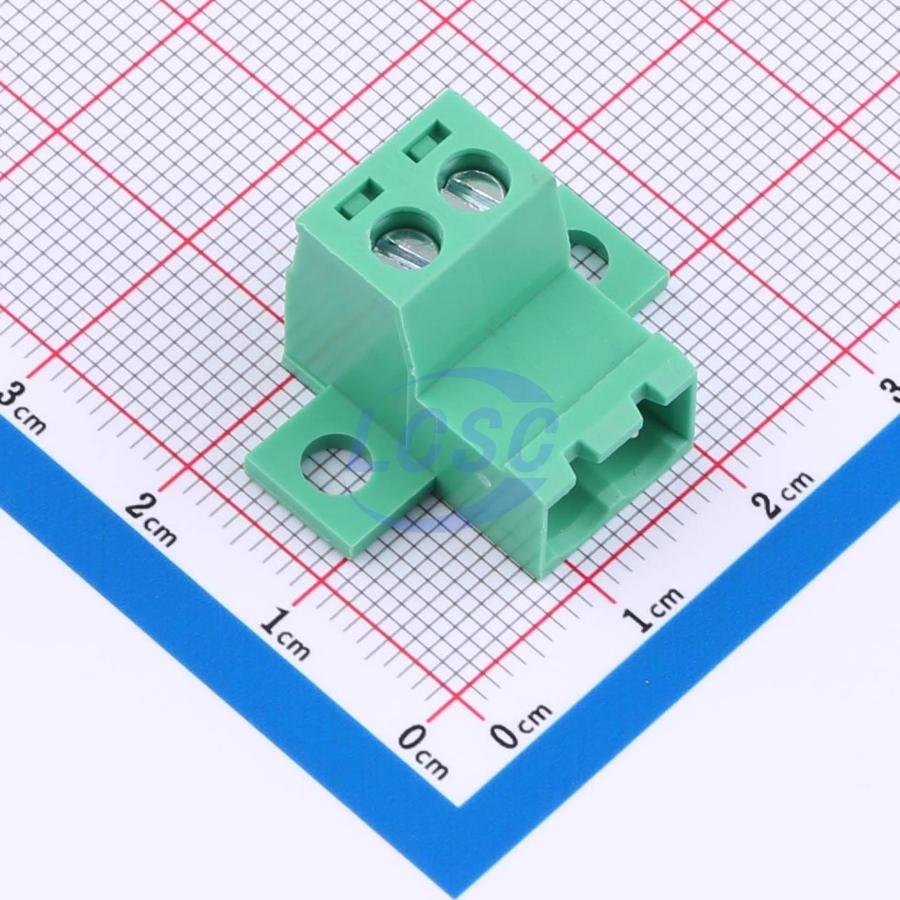

MX2EDGRKF-5.08-02P-GN01-Cu-Y-A
2 Position Male Plug 5.08mm Pitch
P=5.08mmROHS CompliantActive
TERM BLOCK PLUG 2POS 5.08mm
- Manufacturer
- MAX
- Manufacturer part #
- MX2EDGRKF-5.08-02P-GN01-Cu-Y-A
- Store part #
- C48688212
- Package / case
- P=5.08mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
190 in stock
#C48688212
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.46 | ₹167.30 |
| 50+ | ₹26.06 | ₹1,303.00 |
| 200+ | ₹22.90 | ₹4,580.00 |
| 400+ | ₹18.95 | ₹7,580.00 |
| 2,400+ | ₹17.19 | ₹41,256.00 |
| 5,000+ | ₹16.13 | ₹80,650.00 |
5 × ₹33.46
₹167.30
excl. GST
₹197.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 200 per bag
MX2EDGRKF-5.08-02P-GN01-Cu-Y-A
₹167.30 for 5 + GST
Specifications
- Wire Gauge - mm2
- 0.2~2.5
- Wire Gauge - AWG
- 12~28
- Number of Positions or Pins
- 1x2P
- Number of Pins
- 2P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 2
- Number of Rows
- 1
- Current Rating
- 15A
- Outlet Direction (Vertical Basis)
- Top Entry
- Connection Type
- Screw Connection (M2.5)
- Voltage Rating
- 300V
- Pitch
- 5.08mm
- Connector Type
- Male Plug
- Color
- Green
- Termination Style
- Screw
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Bag-packed
- Standard pack
- 200 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 3.41 g
