MAXDatasheet (PDF)

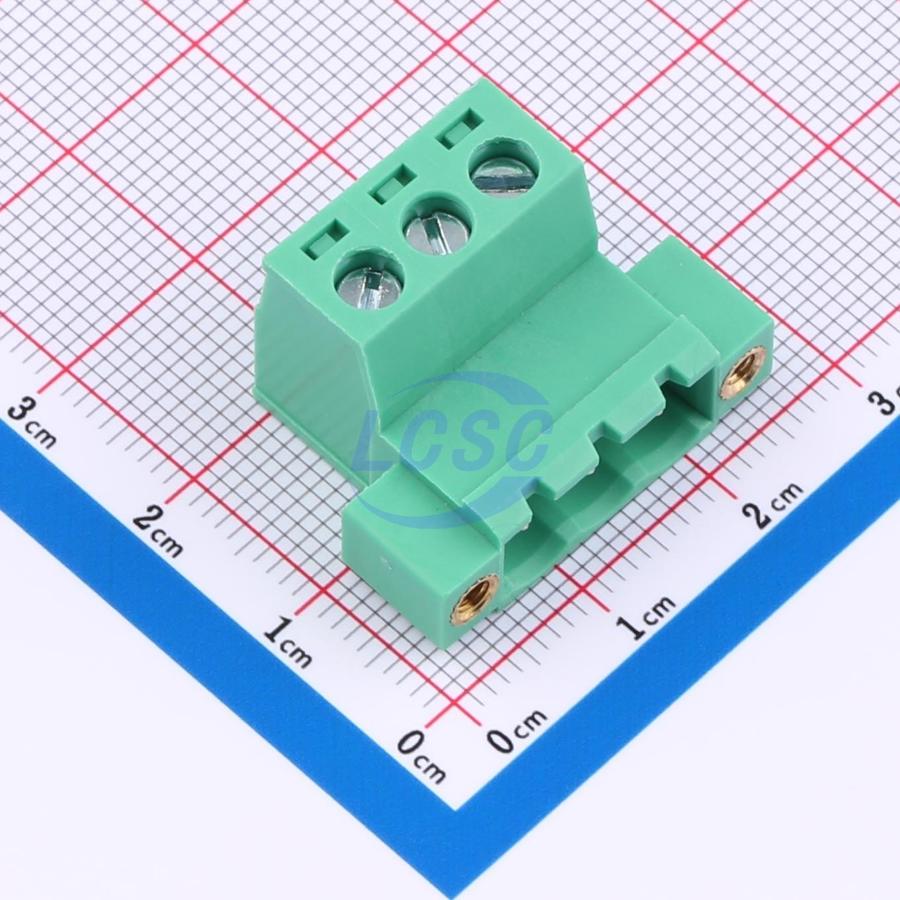

MX2EDGRKP-5.08-03P-GN01-Cu-Y-A
3 Position Male Plug 5.08mm Pitch
P=5.08mmROHS CompliantActive
TERM BLOCK PLUG 3POS 5.08mm
- Manufacturer
- MAX
- Manufacturer part #
- MX2EDGRKP-5.08-03P-GN01-Cu-Y-A
- Store part #
- C48688221
- Package / case
- P=5.08mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
175 in stock
#C48688221
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.68 | ₹68.68 |
| 10+ | ₹53.44 | ₹534.40 |
| 30+ | ₹47.01 | ₹1,410.30 |
| 200+ | ₹38.84 | ₹7,768.00 |
| 400+ | ₹35.42 | ₹14,168.00 |
| 1,000+ | ₹33.06 | ₹33,060.00 |
1 × ₹68.68
₹68.68
excl. GST
₹81.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 200 per bag
MX2EDGRKP-5.08-03P-GN01-Cu-Y-A
₹68.68 for 1 + GST
Specifications
- Wire Gauge - mm2
- 0.2~2.5
- Wire Gauge - AWG
- 12~28
- Number of Positions or Pins
- 1x3P
- Number of Pins
- 3P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 3
- Number of Rows
- 1
- Current Rating
- 15A
- Outlet Direction (Vertical Basis)
- Top Entry
- Connection Type
- Screw Connection (M2.5)
- Voltage Rating
- 300V
- Pitch
- 5.08mm
- Connector Type
- Male Plug
- Color
- Green
- Termination Style
- Screw
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Bag-packed
- Standard pack
- 200 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.439 g
