MX2EDGRKP-5.08-10P-GN01-Cu-Y-A MAX
MAX

MX2EDGRKP-5.08-10P-GN01-Cu-Y-A

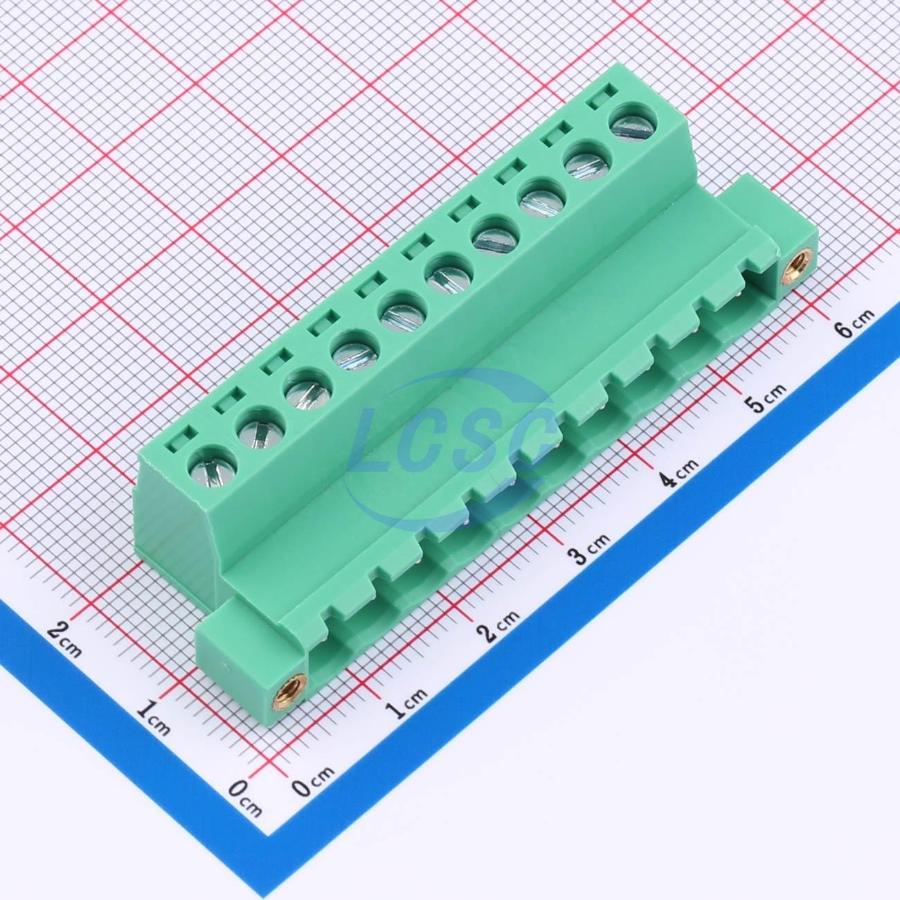

10 Position Male Plug 5.08mm Pitch

P=5.08mmROHS CompliantActive

TERM BLOCK PLUG 10POS 5.08mm

Manufacturer
MAX
Manufacturer part #
MX2EDGRKP-5.08-10P-GN01-Cu-Y-A
Store part #
C48688226
Package / case
P=5.08mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

60 in stock

#C48688226

Stock & price checked 10 days ago

QuantityUnit pricePack price
1+₹167.40₹167.40
10+₹137.78₹1,377.80
60+₹121.46₹7,287.60
120+₹102.80₹12,336.00
480+₹94.65₹45,432.00
1,020+₹91.00₹92,820.00

1 × ₹167.40

₹167.40

excl. GST

₹197.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 60 per bag

MX2EDGRKP-5.08-10P-GN01-Cu-Y-A

₹167.40 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
0.2~2.5
Wire Gauge - AWG
12~28
Number of Positions or Pins
1x10P
Number of Pins
10P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
10
Number of Rows
1
Current Rating
15A
Outlet Direction (Vertical Basis)
Top Entry
Connection Type
Screw Connection (M2.5)
Voltage Rating
300V
Pitch
5.08mm
Connector Type
Male Plug
Color
Green
Mounting Type
Panel Mount
Termination Style
Without fixing device

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
60 / Bag
Sold per
Piece
Minimum order
1
Unit weight
15.693 g

Alternatives

Similar parts — check the datasheet before substituting.

MX2EDGRKF-5.08-10P-GN01-Cu-Y-A#C48688218MAX · P=5.08mm₹152.16 · 60 in stockView
