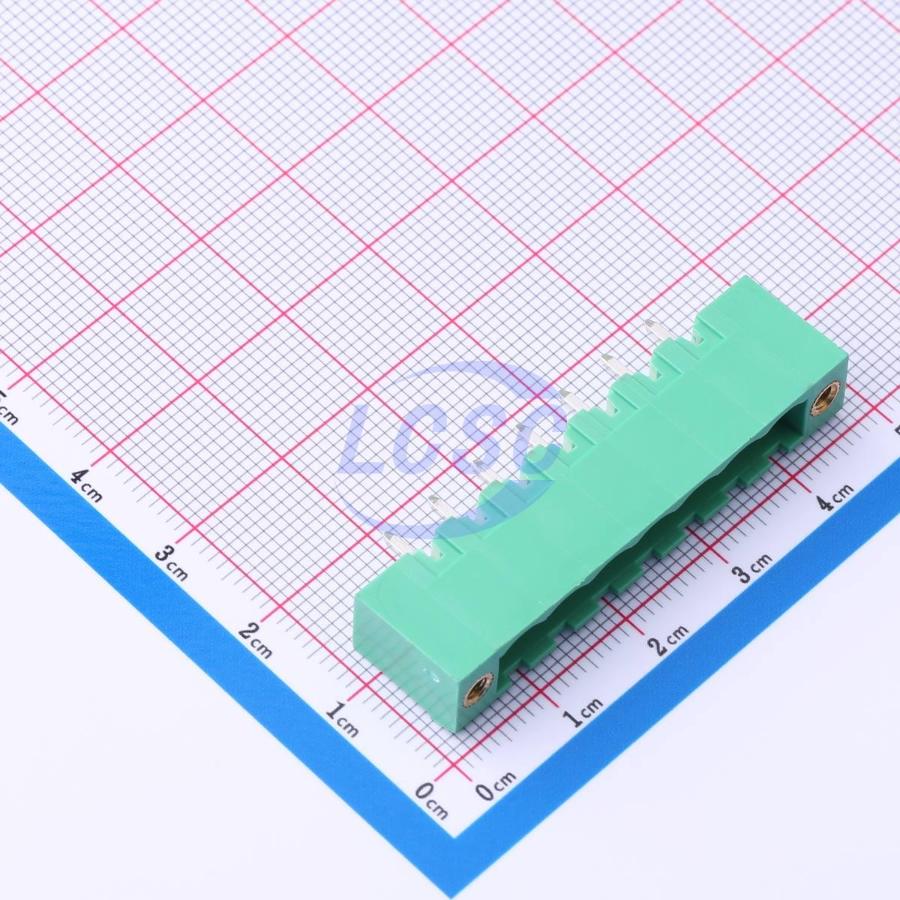

MX2EDGVM-5.08-07P-GN01-Cu-A
7 Position Board Side/Socket - Closed 5.08mm Pitch Straight Pin
Through Hole,P=5.08mmROHS CompliantActive
TERM BLOCK HDR 7POS 5.08mm
- Manufacturer
- MAX
- Manufacturer part #
- MX2EDGVM-5.08-07P-GN01-Cu-A
- Store part #
- C5188070
- Package / case
- Through Hole,P=5.08mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C5188070
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.22 | ₹101.10 |
| 50+ | ₹15.98 | ₹799.00 |
| 200+ | ₹13.67 | ₹2,734.00 |
| 500+ | ₹11.40 | ₹5,700.00 |
| 2,500+ | ₹10.40 | ₹26,000.00 |
| 5,000+ | ₹9.79 | ₹48,950.00 |
5 × ₹20.22
₹101.10
excl. GST
₹119.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per bag
MX2EDGVM-5.08-07P-GN01-Cu-A
₹101.10 for 5 + GST
Specifications
- Current Rating
- 15A
- Number of Positions or Pins
- 1x7P
- Number of Pins
- 7P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 5.08mm
- Color
- Green
- Connector Type
- Board Side/Socket - Closed
- Number of PINs Per Row
- 7
- Mounting Type
- Through Hole
- Termination Style
- Screw
- Number of Rows
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 100 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 3.71 g
