Wuxi MaxinmicroDatasheet (PDF)

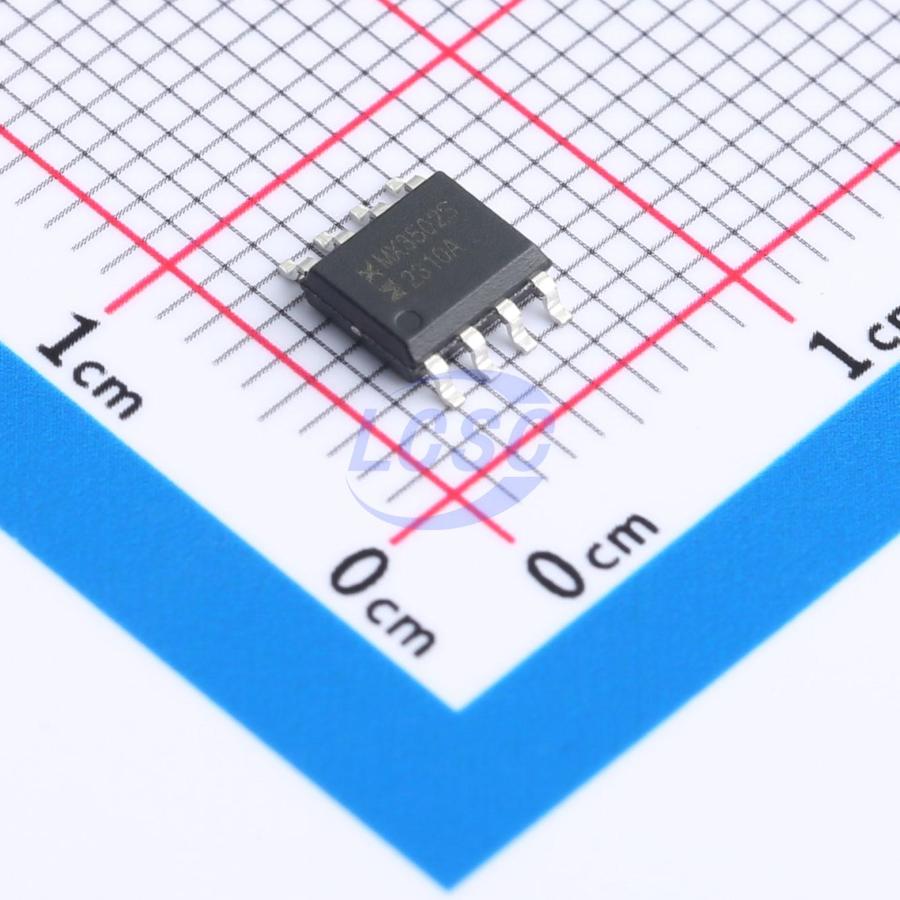

MX3502S
Rail-to-Rail Input, Rail-to-Rail Output 1mV 2pA 2 SOP-8L Linear Comparators RoHS
SOP-8LROHS CompliantActive
Rail to Rail, 2 Channel High Speed Comparator
- Manufacturer
- Wuxi Maxinmicro
- Manufacturer part #
- MX3502S
- Store part #
- C19269867
- Package / case
- SOP-8L
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,280 in stock
#C19269867
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.01 | ₹215.05 |
| 50+ | ₹34.25 | ₹1,712.50 |
| 150+ | ₹30.51 | ₹4,576.50 |
| 500+ | ₹25.82 | ₹12,910.00 |
| 3,000+ | ₹23.75 | ₹71,250.00 |
| 6,000+ | ₹22.49 | ₹1,34,940.00 |
5 × ₹43.01
₹215.05
excl. GST
₹253.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MX3502S
₹215.05 for 5 + GST
Specifications
- Output Type
- Push-pull
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Quiescent Current
- 3.2mA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 5ns
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/shutdown function;Overvoltage protection
- Dual Supply
- 1.35V~2.75V;-2.75V~-1.35V
- Input Hysteresis Voltage (Vhys)
- 6mV
- Common Mode Rejection Ratio(CMRR)
- 57dB
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 2pA
- Number of Channels
- 2
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Input Offset Current(Ios)
- 2pA
- Response Time (tr)
- 1.5ns
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.103 g
Overview
The MX3502S of push pull output comparator feature a fast 5ns propagation delay and operation from 2.7V to 5.5V. Beyond the rails input common-mode range makes it an ideal choice for low voltage applications. The rail to rail output directly drives either CMOS or TTL logic. Micro-size package provide option for portable and space restricted applications. The single is available in SOP8L.
Applications
- Test equipment
- Wireless base stations
- Threshold detectors
- Zero crossing detectors
- Window comparators
Key features
- High Speed: 5ns typical
- Rail to Rail I/O
- Supply Voltage: 2.7V to 5.5V
- Push Pull CMOS Output Stage
- Shutdown
- Low Supply Current: 3.2mA
- dual channel 8-Pin SOP8L Package
