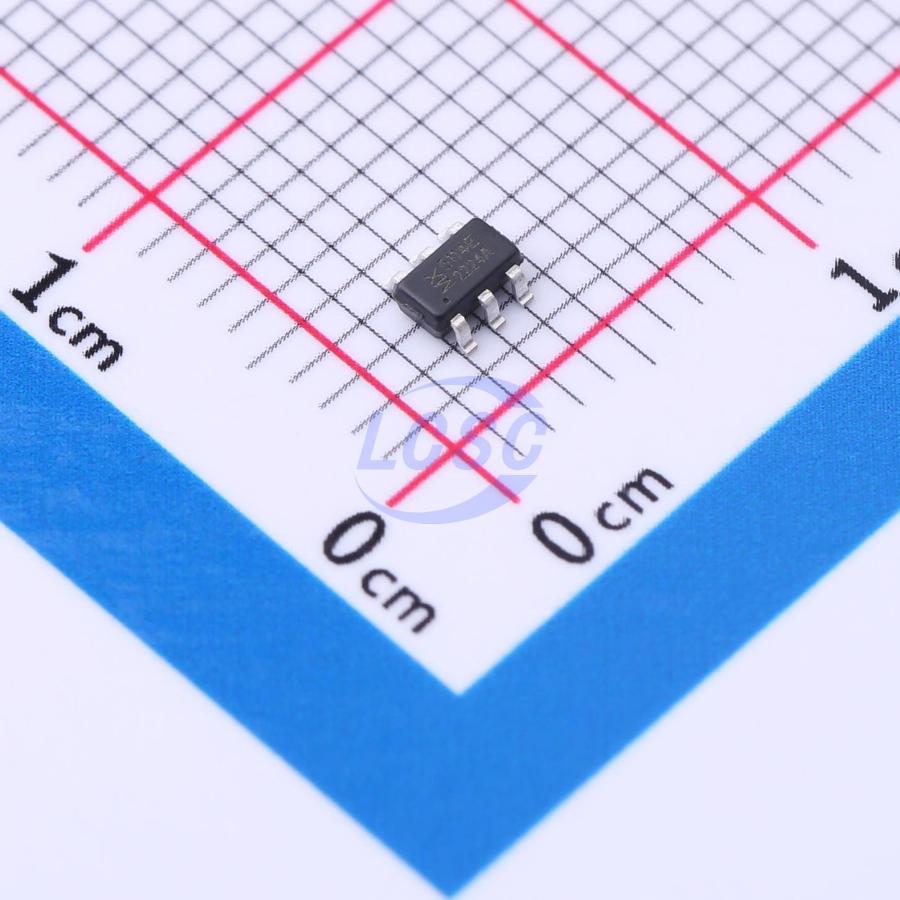

MX5114E
590mW 1 4V~20V 70uA SOT-23-6L Gate Drivers RoHS
Single 15A Peak Current Laser Driver
- Manufacturer
- Wuxi Maxinmicro
- Manufacturer part #
- MX5114E
- Store part #
- C5341120
- Package / case
- SOT-23-6L
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,853 in stock
#C5341120
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.86 | ₹55.86 |
| 10+ | ₹43.90 | ₹439.00 |
| 30+ | ₹38.68 | ₹1,160.40 |
| 100+ | ₹32.16 | ₹3,216.00 |
| 500+ | ₹29.34 | ₹14,670.00 |
| 1,000+ | ₹27.60 | ₹27,600.00 |
1 × ₹55.86
₹55.86
excl. GST
₹65.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MX5114E
₹55.86 for 1 + GST
Specifications
- Pd - Power Dissipation
- 590mW
- number of channels
- 1
- Voltage - Supply
- 4V~20V
- Output Current(Max)
- 15A
- Current - Supply
- 70uA
- Operating Temperature
- -40℃~+125℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
The MX5114E is designed to drive a VCSEL with strong sink current capability from an internal N-MOSFET. The MX5114E provides inverting and noninverting inputs to satisfy requirements for inverting and noninverting input. The inputs of the MX5114E are TTL/CMOS Logic compatible and withstand input voltages up to 18 V regardless of the VDD voltage. The MX5114E has fast switching speed and minimized propagation delays, facilitating high-frequency operation. The MX5114E is available in a 6-pin SOT23-6 package.
Applications
- Laser driver without external MOSFET
Key features
- 4V to 20V Single Power Supply
- 15A Peak Current Transient
- 0.4Ω turn on resistance with internal FET
- 5ns (Typical) Propagation Delay
- Matching Delay Time Between Inverting and Noninverting Inputs
- TTL/CMOS Logic Inputs
- Low Input Capacitance: 2.5pF (Typical)
- -40°C to 125°C Operating Temperature Range
- 6-Pin SOT23-6L
