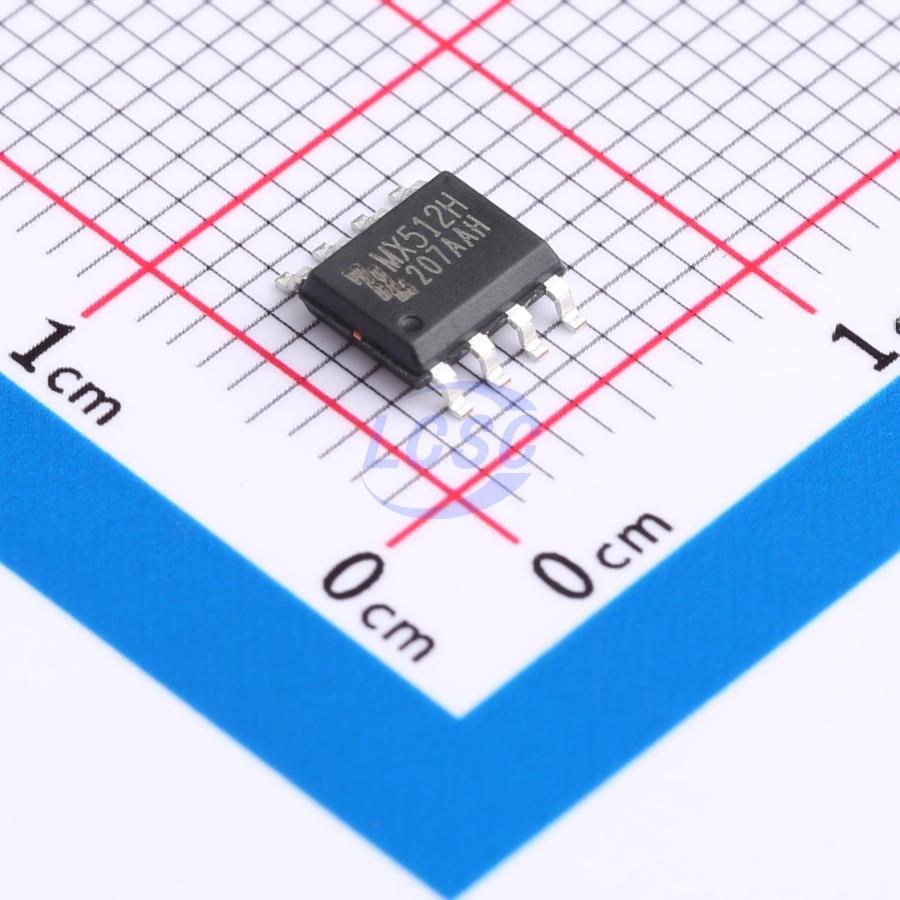

MX512H

- H-bridge circuit topology with integrated N-channel and P-channel power MOSFETs, optimized for driving inductive loads such as coils and motors. - Integrated over-temperature protection: shuts off load current when internal temperature exceeds the set threshold (typical 150°C); resumes normal operation when junction temperature drops back to the preset level (typical 130°C). Note: no short-circuit protection is provided — output-to-GND, output-to-supply, or output-to-output shorts may cause device damage. Avoid short-circuit conditions during use, or implement current-limiting measures to prevent such damage. - Logic supply VCC and power supply VDD are fully independent internally. Route them separately in layout; do NOT connect VCC and VDD directly together, as the high voltage on VDD may damage the VCC rail.

Applications

• Toy motor driver powered by 2–4 AA/AAA dry cell batteries
• Toy motor driver powered by 2–5 NiMH/NiCd rechargeable batteries
• Motor driver powered by 2-cell lithium battery

Key features

• Low standby current (< 0.1uA)
• Operating voltage range: 2V - 8.6V
• Maximum continuous output current: 1.4A (VDD = 6.5V)
• Maximum peak output current: 3A (VDD = 6.5V)
• Low on-resistance — 0.35Ω at 1400mA output current; 0.3Ω at 200mA output current
• Low input current — logic inputs INA\INB with integrated 15K pull-down resistors to GND
• Built-in thermal shutdown (TSD) with hysteresis
• ESD rating: 4KV (HBM)
