MixicDatasheet (PDF)

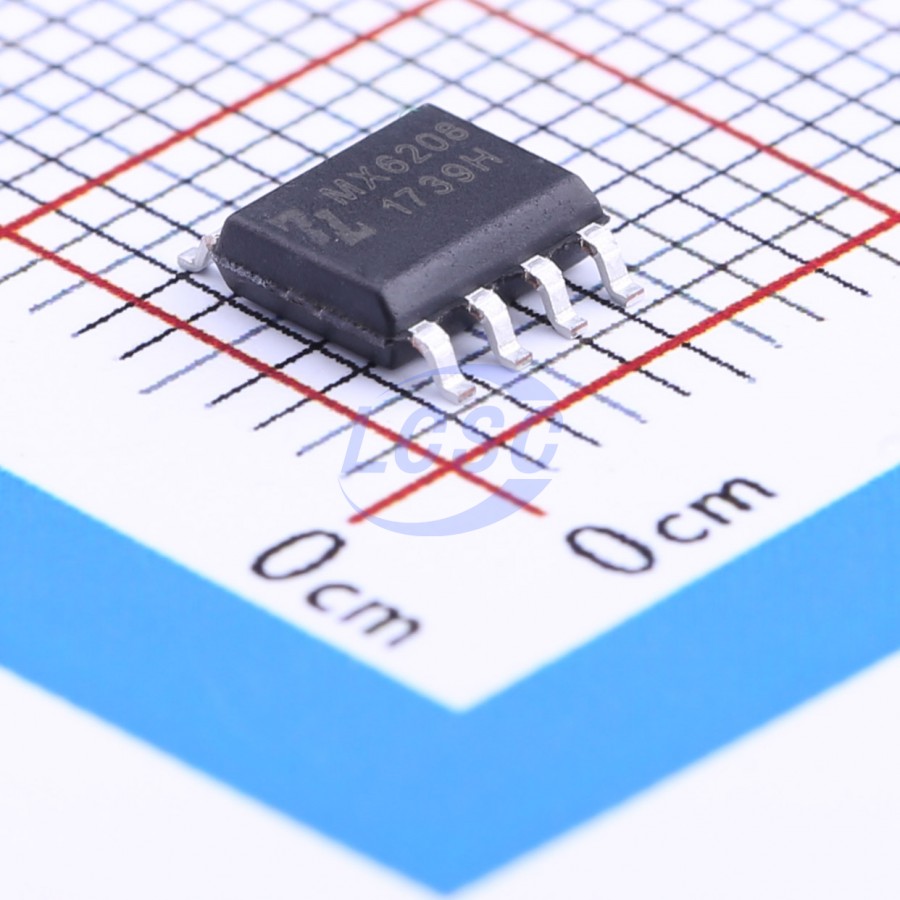

MX6208
4.5V~15V SOP-8 Motor Drivers, Controllers RoHS
SOP-8ROHS CompliantActive
Motor driver
- Manufacturer
- Mixic
- Manufacturer part #
- MX6208
- Store part #
- C155448
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,240 in stock
#C155448
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.94 | ₹69.40 |
| 100+ | ₹5.43 | ₹543.00 |
| 300+ | ₹4.69 | ₹1,407.00 |
| 1,000+ | ₹4.11 | ₹4,110.00 |
| 4,000+ | ₹3.67 | ₹14,680.00 |
| 8,000+ | ₹3.45 | ₹27,600.00 |
10 × ₹6.94
₹69.40
excl. GST
₹81.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MX6208
₹69.40 for 10 + GST
Specifications
- Features
- Active braking function
- Technology
- No
- Voltage - Supply
- 4.5V~15V
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 100nA
- Output Current
- 100mA
- Peak Current
- 500mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.15 g
Overview
- MX6208 is an ASIC designed for controlling and driving bidirectional motors, with TTL/CMOS-compatible inputs and excellent noise immunity; - Internal logic control circuit enables forward rotation, reverse rotation, and braking of bidirectional motors; - Power transistors support a continuous current with a typical value of 100mA; - Built-in clamp diodes provide freewheeling for reverse surge currents from inductive loads.
Applications
- Bidirectional motor driver for camera IR-CUT filter switching
Key features
- Low quiescent current
- Wide supply voltage range: 4.5V - 15V
- Continuous current output capability per channel (typical: 100mA)
- Low saturation voltage drop
- Four output states: forward, reverse, brake, and high-impedance
- TTL/CMOS output level compatible, direct CPU interface
- Built-in output clamp diodes for inductive loads
- Control and drive integrated in a single IC
- Pin overvoltage protection
- ESD immunity: 2000V (HBM)
- Operating temperature range: -20℃ ~ +85℃
