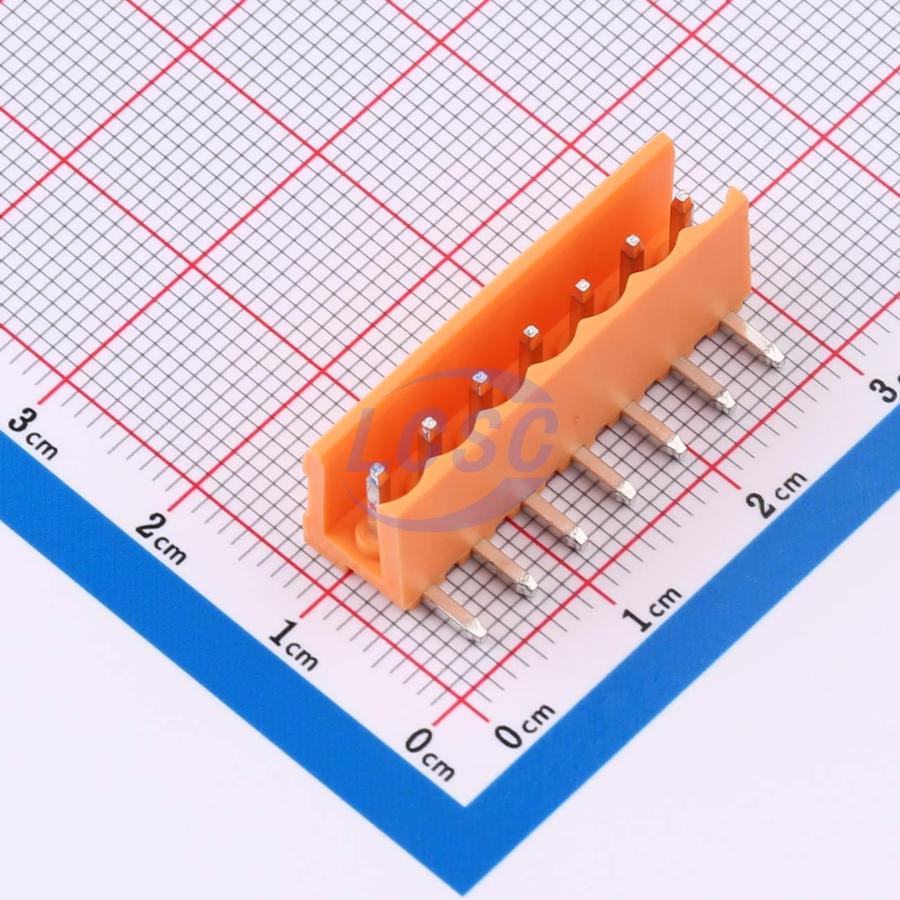

MXHT396R-3.96-07P-OE01-Cu-A MAX
MAX

MXHT396R-3.96-07P-OE01-Cu-A

7 Position Board Side/Socket - Open 3.96mm Pitch Right-Angle Pin

Through Hole,Right Angle,P=3.96mmROHS CompliantActive

TERM BLOCK HDR 7POS 3.96mm

Manufacturer
MAX
Manufacturer part #
MXHT396R-3.96-07P-OE01-Cu-A
Store part #
C48688292
Package / case
Through Hole,Right Angle,P=3.96mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

225 in stock

#C48688292

Stock & price checked 29 h ago

QuantityUnit pricePack price
5+₹16.66₹83.30
50+₹13.04₹652.00
250+₹11.25₹2,812.50
500+₹9.90₹4,950.00
2,500+₹8.81₹22,025.00
5,000+₹8.27₹41,350.00

5 × ₹16.66

₹83.30

excl. GST

₹98.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 250 per bag

MXHT396R-3.96-07P-OE01-Cu-A

₹83.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current Rating
8A
Number of Positions or Pins
1x7P
Number of Pins
7P
Voltage Rating
300V
Operating Temperature
-40℃~+105℃
Pitch
3.96mm
Color
Orange
Connector Type
Board Side/Socket - Open
Number of PINs Per Row
7
Termination Style
Without fixing device
Number of Rows
1
Mounting Type
Right-Angle

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Moisture sensitivity
MSL 2 (1 year)
Packaging
Bag-packed
Standard pack
250 / Bag
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
1.932 g
