MAXDatasheet (PDF)

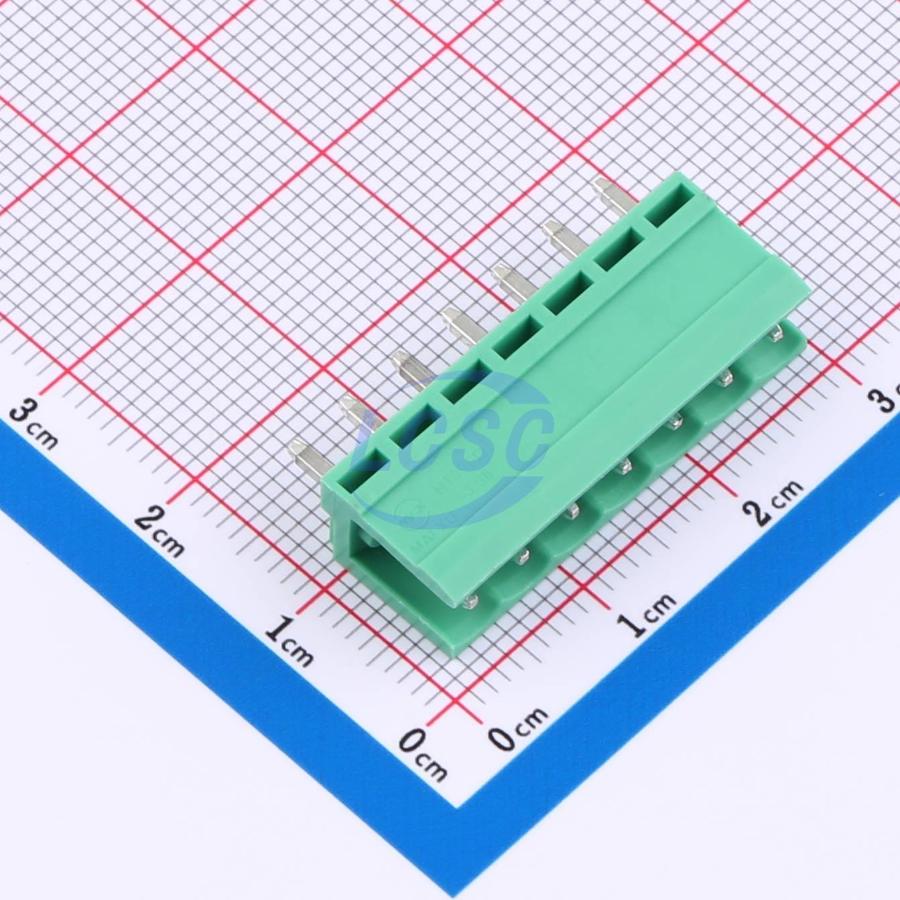

MXHT396V-3.96-07P-GN01-Cu-A
7 Position Board Side/Socket - Open 3.96mm Pitch Straight Pin
Through Hole,P=3.96mmROHS CompliantActive
TERM BLOCK HDR 7POS 3.96mm
- Manufacturer
- MAX
- Manufacturer part #
- MXHT396V-3.96-07P-GN01-Cu-A
- Store part #
- C48688336
- Package / case
- Through Hole,P=3.96mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C48688336
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.99 | ₹84.95 |
| 50+ | ₹13.38 | ₹669.00 |
| 250+ | ₹11.58 | ₹2,895.00 |
| 500+ | ₹10.23 | ₹5,115.00 |
| 2,500+ | ₹9.14 | ₹22,850.00 |
| 5,000+ | ₹8.60 | ₹43,000.00 |
5 × ₹16.99
₹84.95
excl. GST
₹100.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 250 per bag
MXHT396V-3.96-07P-GN01-Cu-A
₹84.95 for 5 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x7P
- Number of Pins
- 7P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.96mm
- Color
- Green
- Connector Type
- Board Side/Socket - Open
- Number of PINs Per Row
- 7
- Termination Style
- Without fixing device
- Number of Rows
- 1
- Mounting Type
- Through Hole
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Bag-packed
- Standard pack
- 250 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.808 g
