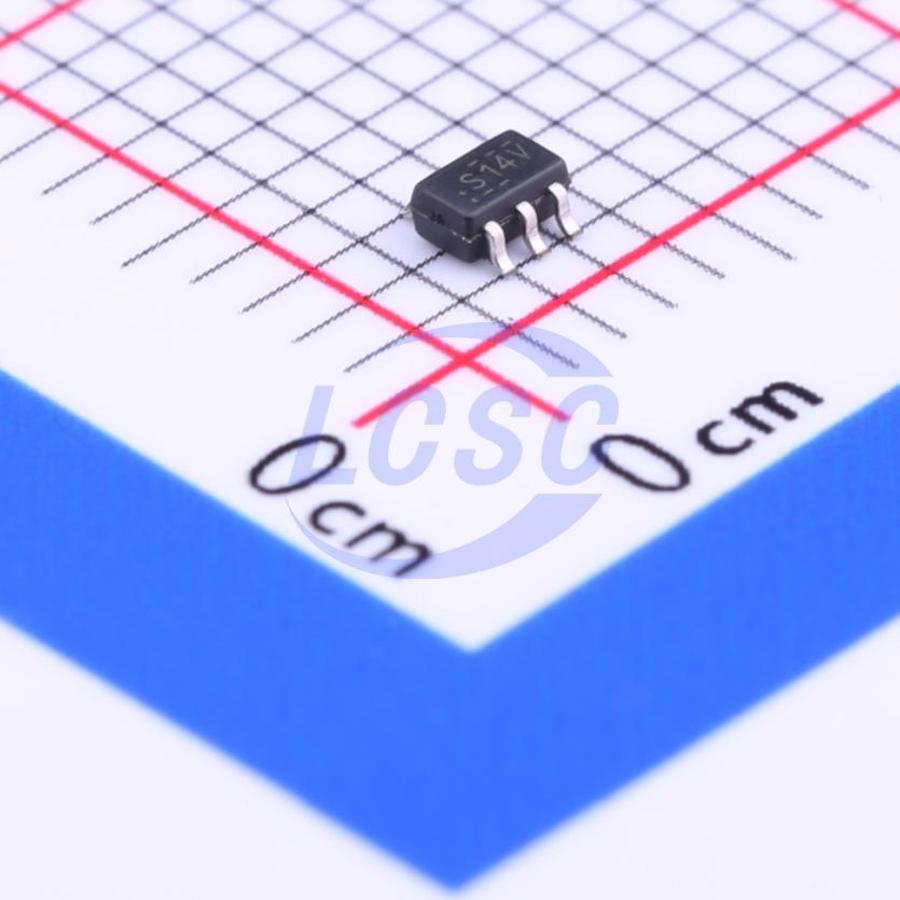

NC7S14P5X
Schmitt trigger 2V~6V 17ns@6V,50pF 1uA 1 SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
TinyLogic HS Inverter with Schmitt Trigger Input
- Manufacturer
- onsemi
- Manufacturer part #
- NC7S14P5X
- Store part #
- C232806
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,010 in stock
#C232806
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.31 | ₹103.10 |
| 100+ | ₹8.30 | ₹830.00 |
| 300+ | ₹7.29 | ₹2,187.00 |
| 3,000+ | ₹5.87 | ₹17,610.00 |
| 6,000+ | ₹5.27 | ₹31,620.00 |
| 9,000+ | ₹4.97 | ₹44,730.00 |
10 × ₹10.31
₹103.10
excl. GST
₹121.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7S14P5X
₹103.10 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 7S
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 0V~100mV
- Propagation Delay
- 17ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 300mV~1.5V
- Output Logic Level - High
- 1.9V~2V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The NC7S14 is a single high performance CMOS Inverter with Schmitt Trigger input. The circuit design provides hysteresis between the positive−going and negative going input thresholds thereby improving noise margins. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both input and output with respect to the VCC and GND rails.
Key features
- Space Saving SOT23−5, SC−74A and SC−88A 5−Lead Package
- Ultra Small MicroPak Leadless Package
- Schmitt Input Hysteresis: > 1 V Typ
- High Speed: tpD = 4.5 ns Typ
- Low Quiescent Power: ICC < 1 μA
- Balanced Output Drive: 2 mA IOL, −2 mA IOH
- Broad VCC Operating Range: 2 V – 6 V
- Balanced Propagation Delays
- Specified for 3 V Operation
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
