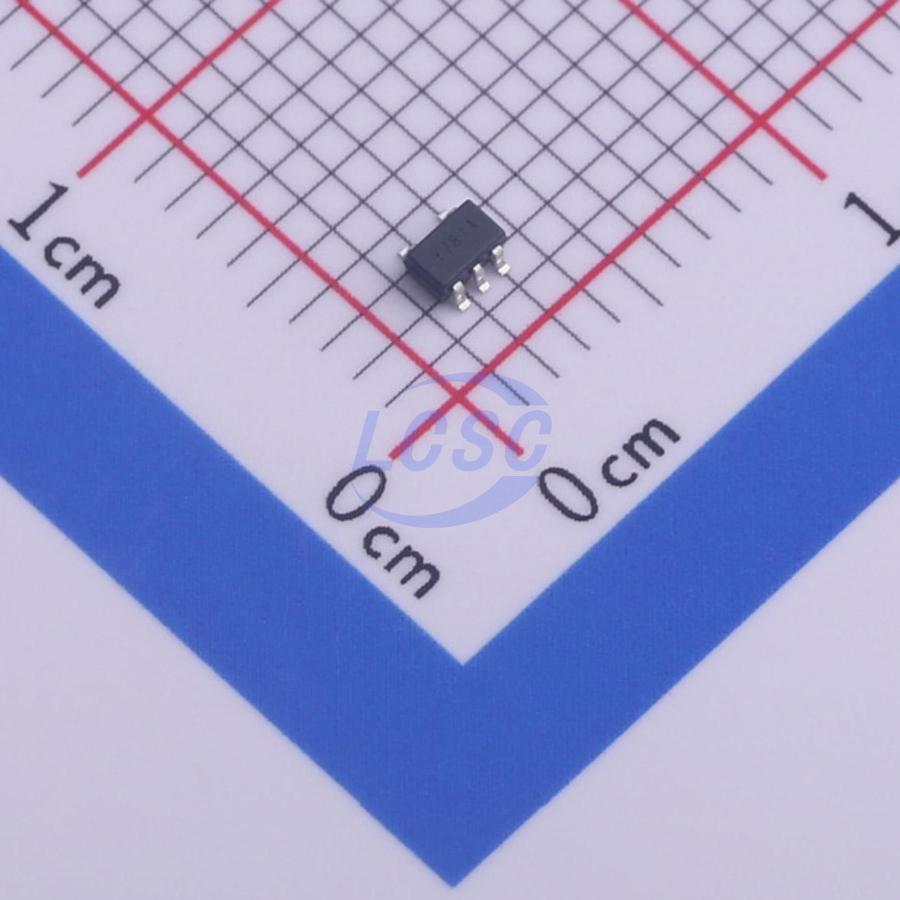

DIODES

74AHC1G14SE-7

Schmitt trigger 2V~5.5V 10.6ns@5V,50pF 1uA 1 SOT-353 Gates and Inverters RoHS

SOT-353ROHS3 CompliantActive

Single Schmitt-Trigger Inverter

Manufacturer: DIODES
Manufacturer part #: 74AHC1G14SE-7
Store part #: C460491
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,780 in stock

#C460491

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.24	₹76.20
50+	₹12.33	₹616.50
150+	₹10.86	₹1,629.00
500+	₹9.78	₹4,890.00
3,000+	₹8.77	₹26,310.00
6,000+	₹8.33	₹49,980.00

Quantity (min 5, multiples of 5)

5 × ₹15.24

₹76.20

excl. GST

₹89.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHC1G14SE-7

₹76.20 for 5 + GST

Specifications

output type: Push-pull
Logic Family: 74AHC
Input Type: Schmitt trigger
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 550mV
Propagation Delay: 10.6ns@5V,50pF
Features: Noise suppression function
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 900mV~1.65V
Input Logic Level - High: 2.2V~3.85V
Quiescent Current(Iq): 1uA
Number of Channels: 1
Current - Output High(IOH): 8mA
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.014 g

Overview

The 74AHC1G14 is a single 1-input Schmitt-trigger inverter gate with a standard push-pull output. The device is designed for operation with a power supply range of 2.0V to 5.5V. The gate performs the positive Boolean function: Pin Assignments Y = A(overline)

Applications

General Purpose Logic
Wide array of products such as: PCs, networking, notebooks, netbooks, PDAs
Computer peripherals, hard drives, CD/DVD ROM
TV, DVD, DVR, set top box
Personal Navigation / GPS
MP3 players, Cameras, Video Recorders

Key features

Supply Voltage Range from 2.0V to 5.5V
±8 mA Output Drive at 5.0V
CMOS low power consumption Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for Slower Input Rise and Fall Time
ESD Protection per JESD 22:
Exceeds 200-V Machine Model (A115-A)
Exceeds 2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
Latch-Up Exceeds 100mA per JESD 78, Class II
SOT25 and SOT353: Assembled with “Green” Molding Compound (no Br, Sb)
Lead Free Finish / RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
74AHC1G14GW,125#C282410Nexperia · TSSOP-5	Nexperia	TSSOP-5	9,560	₹18.50 · 9,560 in stock	View
SN74AHC1G14DCKR#C66196TI · SC-70-5	TI	SC-70-5	10,875	₹10.95 · 10,875 in stock	View
74AHC1G14GW-Q100,1#C554295Nexperia · TSSOP-5-1.3mm	Nexperia	TSSOP-5-1.3mm	855	₹20.73 · 855 in stock	View
EM74AHC1G14GW#C49188272EnergyMath · SOT-353	EnergyMath	SOT-353	3,000	₹8.85 · 3,000 in stock	View
74AHC1G04QSE-7#C3272822DIODES · SOT-353	DIODES	SOT-353	10	₹8.86 · 10 in stock	View
