TECH PUBLICDatasheet (PDF)

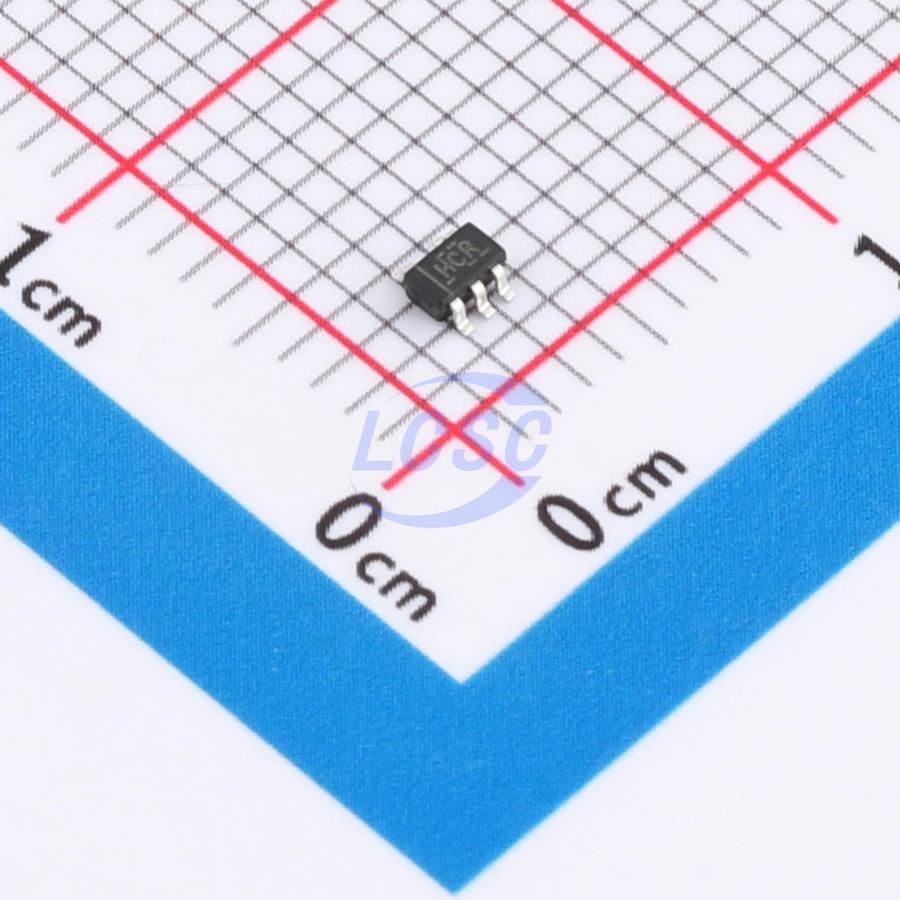

NC7SP04P5X-TP
800mV~3.6V 2.1ns@3.3V,5pF 500nA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SP04P5X-TP
- Store part #
- C52098161
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C52098161
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.62 | ₹96.20 |
| 100+ | ₹7.57 | ₹757.00 |
| 300+ | ₹6.54 | ₹1,962.00 |
| 3,000+ | ₹5.77 | ₹17,310.00 |
| 6,000+ | ₹5.15 | ₹30,900.00 |
| 9,000+ | ₹4.84 | ₹43,560.00 |
10 × ₹9.62
₹96.20
excl. GST
₹113.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SP04P5X-TP
₹96.20 for 10 + GST
Specifications
- Voltage - Supply
- 800mV~3.6V
- Output Logic Level - Low
- 100mV;310mV;440mV
- Propagation Delay
- 2.1ns@3.3V,5pF
- Features
- Power shutdown protection;Power-off protection function
- Input Logic Level - High
- 1.6V;2V
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Number of Channels
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
NC7SP04P5X-TP is a single inverter gate with the logic function Y = Ā. The device features a power-down protection circuit to prevent damage during power-down conditions.
Applications
- Audio docking station
- Blu-ray player
- Home theater
- Embedded PC
- Personal digital assistant
Key features
- Wide supply voltage range, 0.8V to 3.6V
- Inputs tolerant up to 3.6V
- I_OFF supports partial power-down mode
- Low quiescent current; I_CC = 0.5μA (max)
- ESD protection exceeds JESD 22 standard
