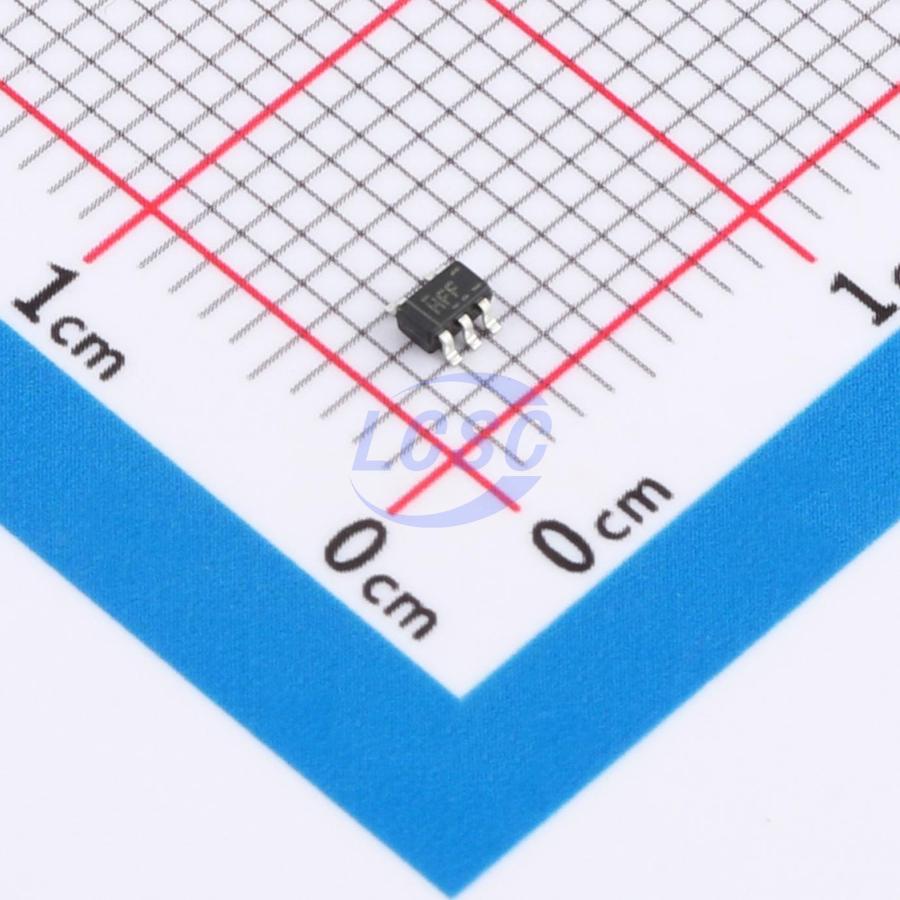

NC7SP14P5X-TP
Schmitt trigger 800mV~3.6V 3.9ns@3.3V,15pF 500nA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SP14P5X-TP
- Store part #
- C52098159
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C52098159
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SP14P5X-TP
₹58.50 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 7SP
- Voltage - Supply
- 800mV~3.6V
- Propagation Delay
- 3.9ns@3.3V,15pF
- Output Logic Level - Low
- 100mV;310mV;440mV
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
NC7SP14P5X-TP is a single gate with Schmitt-trigger input, supporting slow input transitions and providing improved switching noise immunity at the input. The device ensures extremely low static and dynamic power consumption across the entire VCC range of 0.8V to 3.6V.
Applications
- Audio/Video Receivers
- Audio Docking Stations
- Blu-ray Players & Home Theater Systems
- Embedded PCs
- PDAs
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (max)
- ESD protection exceeds JESD 22
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
