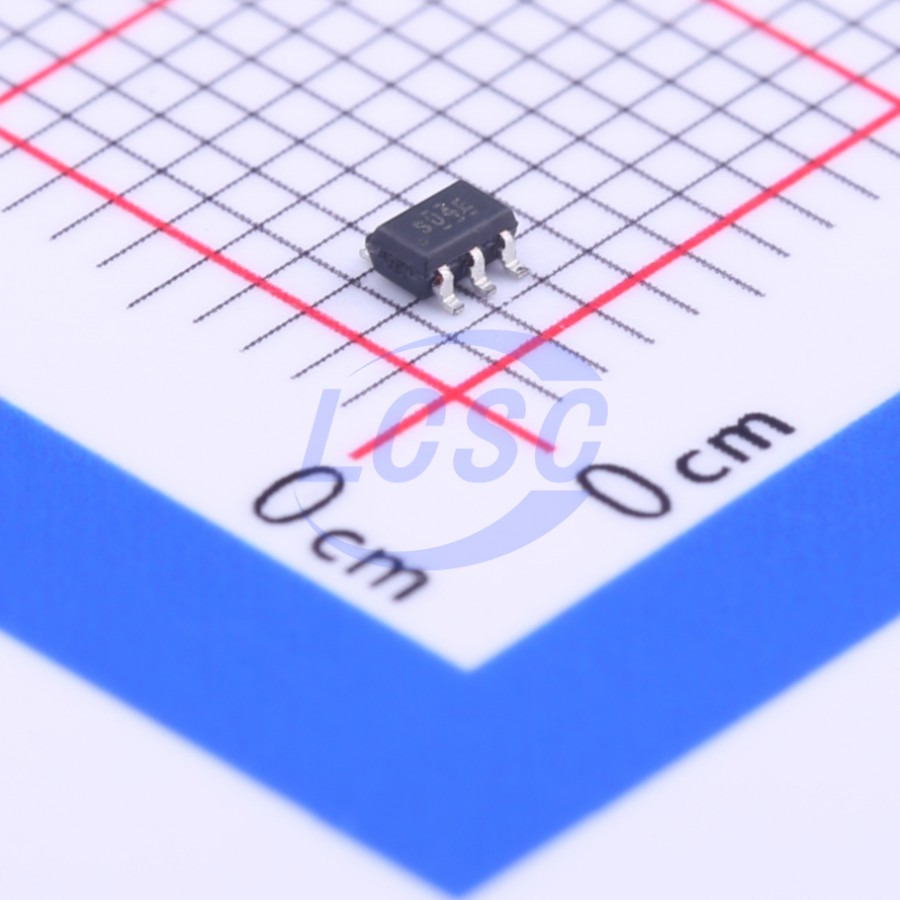

TinyLogic HS Unbuffered Inverter
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SU04P5X
- Store part #
- C232813
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,280 in stock
#C232813
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.98 | ₹79.80 |
| 100+ | ₹6.55 | ₹655.00 |
| 300+ | ₹5.83 | ₹1,749.00 |
| 3,000+ | ₹5.29 | ₹15,870.00 |
| 6,000+ | ₹4.87 | ₹29,220.00 |
| 9,000+ | ₹4.66 | ₹41,940.00 |
10 × ₹7.98
₹79.80
excl. GST
₹94.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SU04P5X
₹79.80 for 10 + GST
Specifications
- Logic Family
- 7SU
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 17ns@6V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.7V~4.8V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The NC7SU04 is a single special purpose CMOS Inverter. The inverter circuit is designed with a single unbuffered stage to facilitate use in crystal oscillator applications. It is not intended for use in logic inversion applications. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both input and output with respect to the VCC and GND rails.
Key features
- Space saving SOT23 or SC70 5 - lead package
- Ultra small MicroPak leadless package
- Unbuffered for crystal oscillator applications
- Low Quiescent Power; ΔCC < 1 μA
- Balanced Output Drive; 2 mA|OL, - 2 mA l0H
- Broad VCC Operating Range; 2V–6V
- Balanced Propagation Delays
- Specified for 3V operation
