onsemi

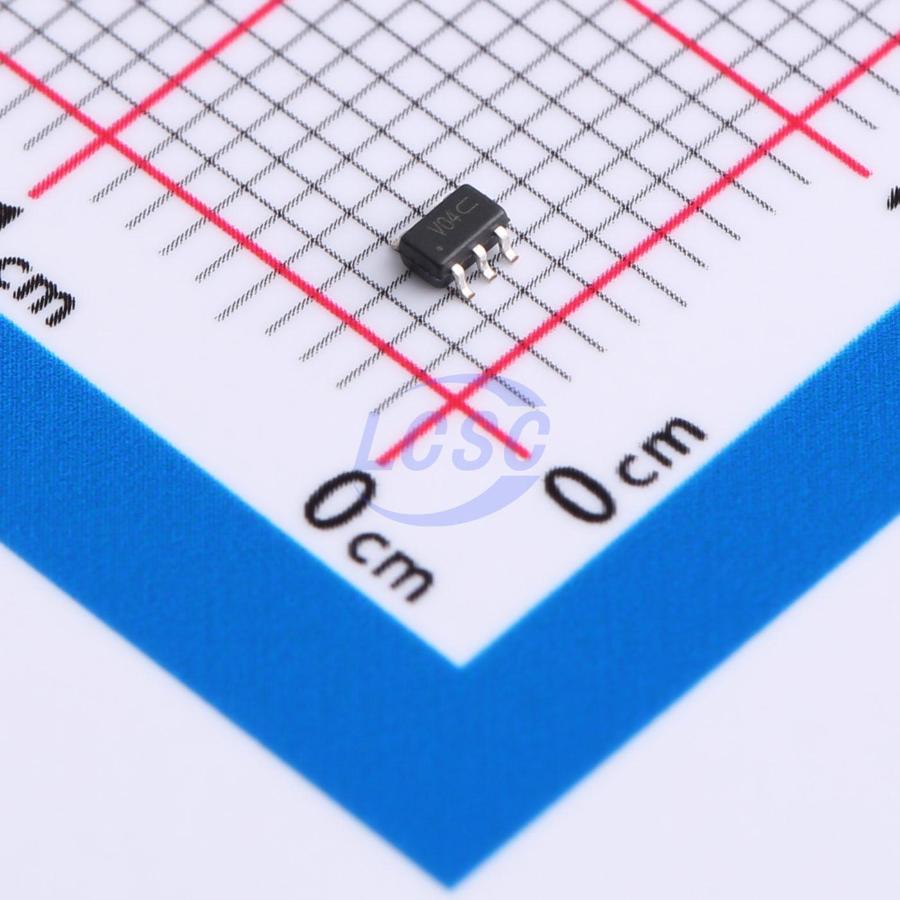

NC7SV04P5X

900mV~3.6V 2.3ns@3V,30pF 900nA 1 SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS3 CompliantActive

TinyLogic ULP-A Inverter

Manufacturer: onsemi
Manufacturer part #: NC7SV04P5X
Store part #: C891941
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,670 in stock

#C891941

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
5+	₹11.50	₹57.50
50+	₹10.08	₹504.00
150+	₹9.37	₹1,405.50
500+	₹8.84	₹4,420.00
3,000+	₹7.29	₹21,870.00
6,000+	₹7.08	₹42,480.00

Quantity (min 5, multiples of 5)

5 × ₹11.50

₹57.50

excl. GST

₹67.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NC7SV04P5X

₹57.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 7SV
Voltage - Supply: 900mV~3.6V
Propagation Delay: 2.3ns@3V,30pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+85℃
Input Logic Level - Low: 700mV~800mV
Input Logic Level - High: 1.6V~2V
Output Logic Level - High: 2.2V
Quiescent Current(Iq): 900nA
Current - Output High(IOH): 24mA
Number of Channels: 1
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.102 g

Overview

0.9V to 3.6V VCC Supply Operation 3.6V Over-Voltage Tolerant I/Os at VCC from 0.9V to 3.6V Extremely High Speed tPD - 1.5ns: Typical for 2.7V to 3.6V VCC - 1.8ns: Typical for 2.3V to 2.7V VCC - 2.0ns: Typical for 1.65V to 1.95V VCC - 3.2ns: Typical for 1.4V to 1.6V VCC - 6.0ns: Typical for 1.1V to 1.3V VCC - 12.0ns: Typical for 0.9V VCC Power-Off High-Impedance Inputs and Outputs High Static Drive (10H/loL) - ±24mA at 3.00V VCC - ±18mA at 2.30V VCC - ±6mA at 1.65V VCC - ±4mA at 1.4V VCC - ±2mA at 1.1V VCC - ±0.1mA at 0.9V VCC Uses Proprietary Quiet Series™ Noise/EMI Reduction Circuitry Ultra-Small MicroPak™ Packages Ultra-Low Dynamic Power The NC7SV04 is a single inverter from Fairchild's UltraLow Power (ULP-A) Series of TinyLogic. ULP-A is ideal for applications that require extreme high speed, high drive, and low power. This product is designed for a wide low-voltage operating range (0.9V to 3.6V VCC) and applications that require more drive and speed than the TinyLogic ULP series, but still offer best-in-class, low-power operation. The NC7SV04 is uniquely designed for optimized power and speed and is fabricated with an advanced CMOS technology to achieve high-speed operation while maintaining low CMOS power dissipation.
