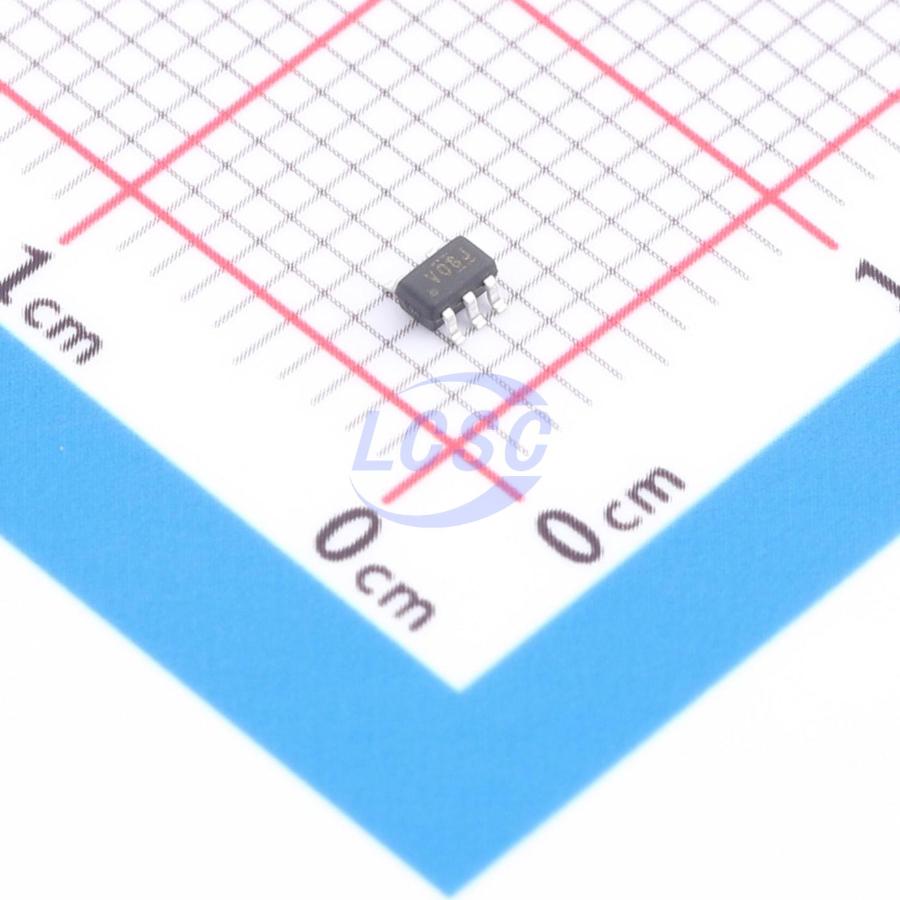

NC7SV08P5X-TP
500nA 900mV~3.6V 32.8ns@0.9V,30pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SV08P5X-TP
- Store part #
- C54561874
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C54561874
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.69 | ₹53.45 |
| 50+ | ₹8.40 | ₹420.00 |
| 150+ | ₹7.26 | ₹1,089.00 |
| 500+ | ₹6.42 | ₹3,210.00 |
| 3,000+ | ₹5.73 | ₹17,190.00 |
| 6,000+ | ₹5.38 | ₹32,280.00 |
5 × ₹10.69
₹53.45
excl. GST
₹63.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SV08P5X-TP
₹53.45 for 5 + GST
Specifications
- Input Logic Level - Low
- 0V;700mV;900mV
- Input Logic Level - High
- 1.6V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 900mV~3.6V
- Number of Channels
- 2;1
- Output Logic Level - Low
- 100mV;310mV;440mV
- Propagation Delay
- 32.8ns@0.9V,30pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
This is a 2-input AND gate providing the function Y = A × B, or Y = Ā + B̄ in positive logic. The device ensures ultra-low static and dynamic power consumption across the entire VCC range of 0.9V to 3.6V.
Key features
- Wide supply voltage range: 0.9V ~ 3.6V
- Inputs tolerant up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; Icc = 0.5μA (max)
- ESD protection exceeds JESD 22
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
