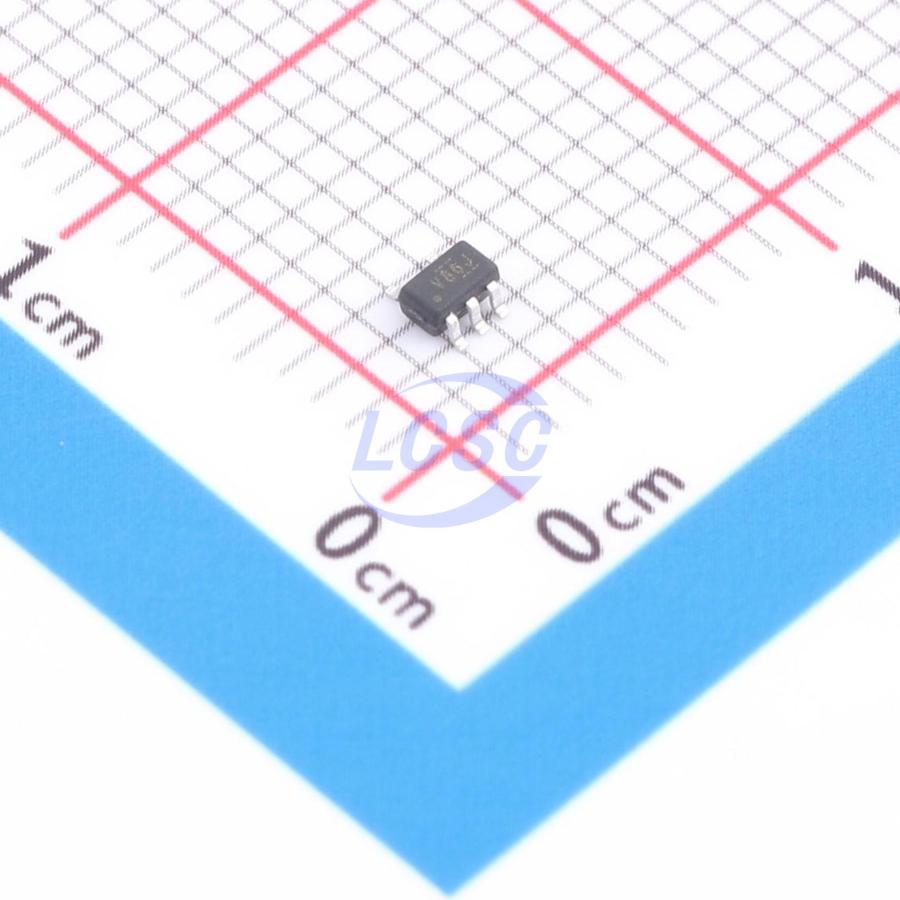

NC7SV86P5X-TP
500nA 900mV~3.6V 4.4ns@3.3V,30pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SV86P5X-TP
- Store part #
- C54561876
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C54561876
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.86 | ₹109.30 |
| 50+ | ₹17.09 | ₹854.50 |
| 150+ | ₹15.04 | ₹2,256.00 |
| 500+ | ₹12.50 | ₹6,250.00 |
| 3,000+ | ₹11.36 | ₹34,080.00 |
| 6,000+ | ₹10.69 | ₹64,140.00 |
5 × ₹21.86
₹109.30
excl. GST
₹128.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SV86P5X-TP
₹109.30 for 5 + GST
Specifications
- Input Logic Level - Low
- 0V;700mV;900mV
- Input Logic Level - High
- 1.6V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.11V;1.32V;1.9V;2.05V;2.6V;2.72V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 900mV~3.6V
- Number of Channels
- 2;1
- Propagation Delay
- 4.4ns@3.3V,30pF
- Output Logic Level - Low
- 100mV;310mV;440mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
This is a single 2-input exclusive-OR gate providing the function Y = A XOR B or Y = AB̄ + ĀB in positive logic. The device ensures very low static and dynamic power consumption over the entire VCC range of 0.9V to 3.6V.
Applications
- AV receivers
- Portable audio docks
- Blu-ray players and home theaters
- Embedded PCs
- Personal digital assistants (PDAs)
- Power supplies: telecom/server AC/DC; single controller: analog and digital
- Solid-state drives (SSDs): client and enterprise
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.9V ~ 3.6V
- Input accepts voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (max)
- ESD protection exceeds JESD 22 standard
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
