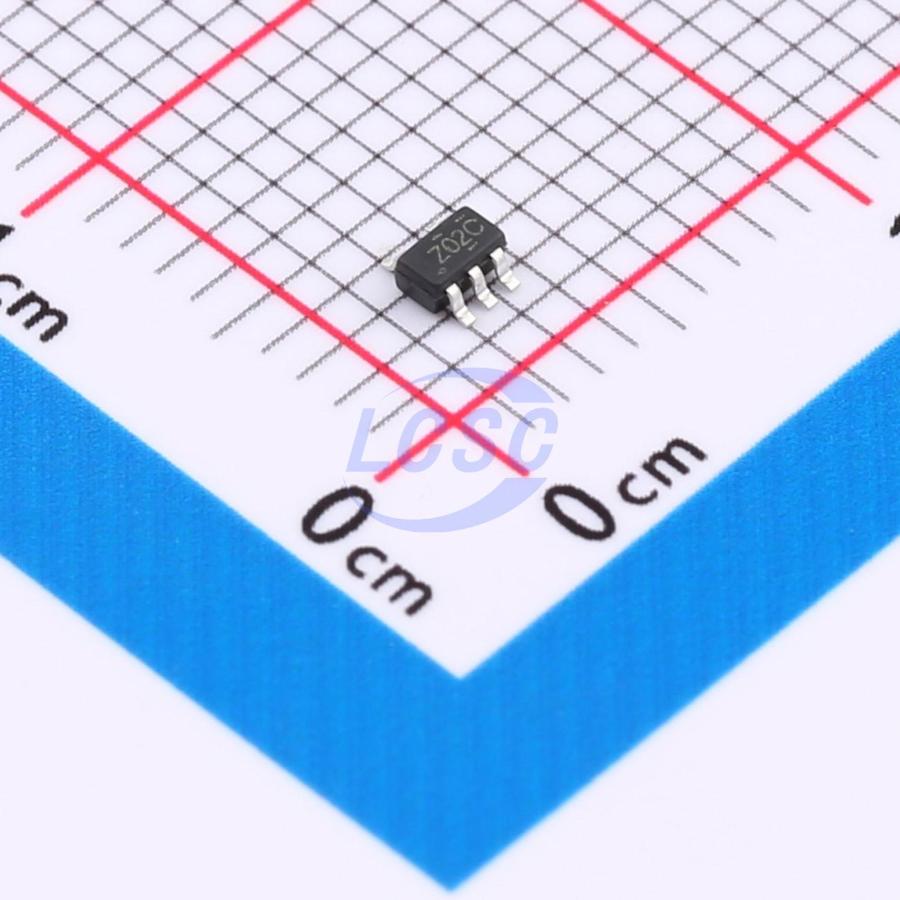

NC7SZ02P5X
1uA 1.65V~5.5V 7.9ns@3.3V,15pF SOT-353 Gates and Inverters
SOT-353RoHSActive
2-INPUT NOR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SZ02P5X
- Store part #
- C41408011
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,600 in stock
#C41408011
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.76 | ₹67.60 |
| 100+ | ₹5.42 | ₹542.00 |
| 300+ | ₹4.76 | ₹1,428.00 |
| 3,000+ | ₹4.26 | ₹12,780.00 |
| 6,000+ | ₹3.86 | ₹23,160.00 |
| 9,000+ | ₹3.66 | ₹32,940.00 |
10 × ₹6.76
₹67.60
excl. GST
₹79.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ02P5X
₹67.60 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.29V~4.2V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 2;2
- Current - Output High(IOH)
- 24mA
- Propagation Delay
- 7.9ns@3.3V,15pF
- Output Logic Level - Low
- 0V~550mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
The NC7SZ02P5X is a 2-input NOR gate Device which provides the Function Y = A(overline) + B(overline) in positive logic.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply: Single
- Controller: Analog and Digital
- Solid State Drive (SSD): Client and Enterprise
- Wireless Headset, Keyboard, and Mouse
Key features
- Operate from 1.65V to 5.5V
- ±24mA Output Drive (VCC = 3.0V)
- High Noise Immunity
- Power Down Protection
- Compact package: SOT-353
