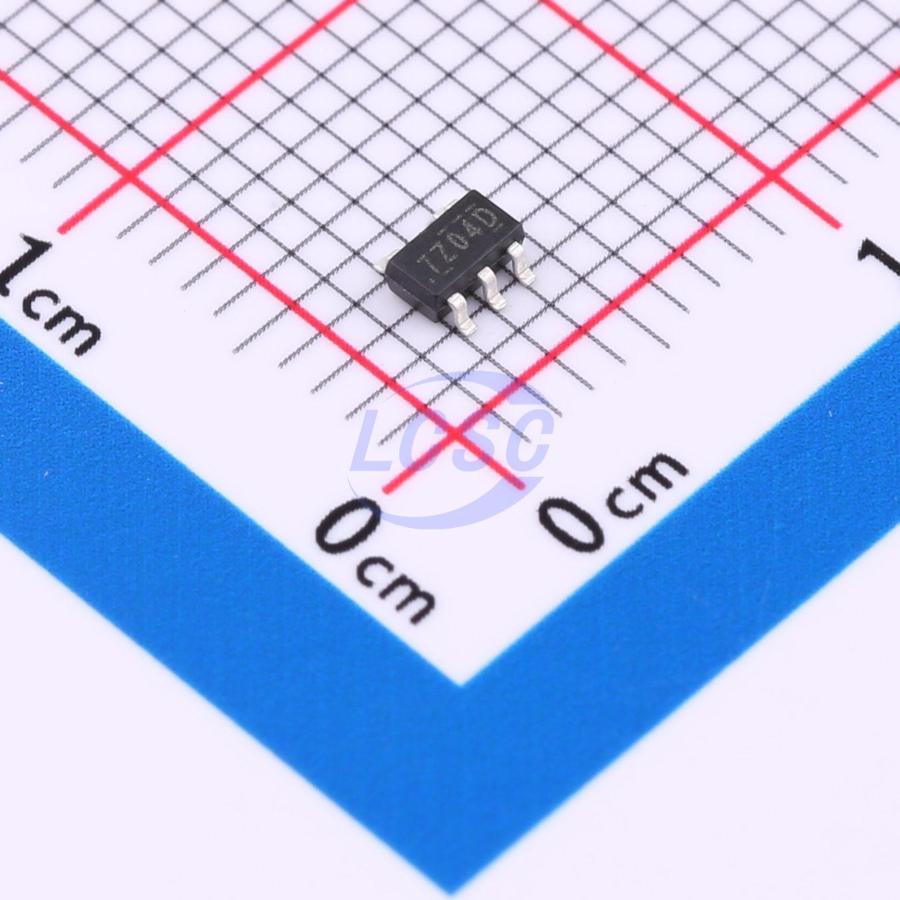

NC7SZ04M5X
10uA 1.65V~5.5V 3.3ns@3.3V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
Single Inverter Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SZ04M5X
- Store part #
- C19829500
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,220 in stock
#C19829500
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.41 | ₹74.10 |
| 100+ | ₹5.89 | ₹589.00 |
| 300+ | ₹5.13 | ₹1,539.00 |
| 3,000+ | ₹4.56 | ₹13,680.00 |
| 6,000+ | ₹4.11 | ₹24,660.00 |
| 9,000+ | ₹3.89 | ₹35,010.00 |
10 × ₹7.41
₹74.10
excl. GST
₹87.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ04M5X
₹74.10 for 10 + GST
Specifications
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;1
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 3.3ns@3.3V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
The Operating Voltage Range of the single inverter is 1.65-V to 5.5-V. The NC7SZ04 device contains one inverter and performs the Boolean function Y = A(overline). The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. This device is fully specified for partial-powerdown applications using loff. The loff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Applications
- AV Receivers
- Audio Docks: Portable
- Blu-ray Players and Home Theater
- Embedded PC
- MP3 Player/Recorder (Portable Audio)
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply
- Solid State Drive (SSD): Client and Enterprise
- TV: LCD/Digital and High-Definition (HDTV)
- Tablet: Enterprise
- Video Analytics: Server
- Wireless Headset, Keyboard, and Mouse
Key features
- Low Power Consumption, 10-μA Max Icc
- Supports 5-V Vcc Operation
- Inputs Accept Voltages to 5.5 V
- Max tpd of 3.3 ns at 3.3 V
- ±24-mA Output Drive at 3.3 V
- loff Supports Partial-Power-Down Mode
- Typical V₀ₕᵥ > 2 V at Vcc = 3.3 V, Tₐ = 25°C
- Typical Vₒₗₚ < 0.8 V at Vcc = 3.3 V, Tₐ = 25°C
