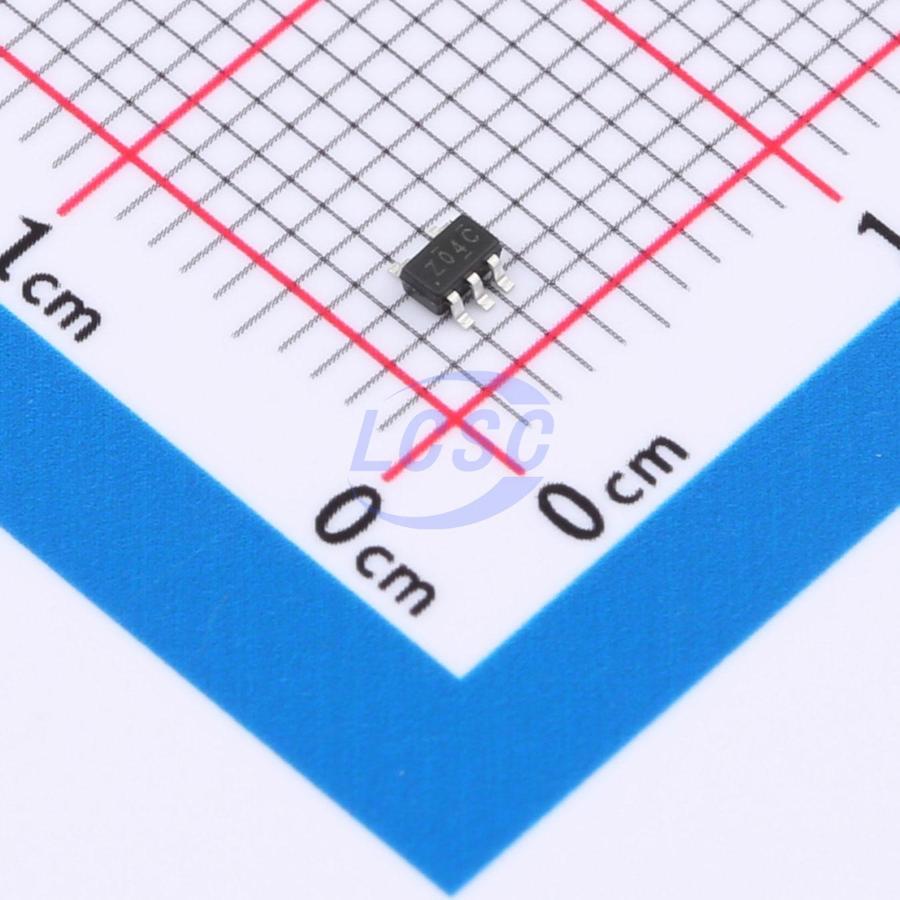

Single Inverter Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SZ04P5X
- Store part #
- C19829605
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,100 in stock
#C19829605
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.88 | ₹68.80 |
| 100+ | ₹5.53 | ₹553.00 |
| 300+ | ₹4.86 | ₹1,458.00 |
| 3,000+ | ₹4.34 | ₹13,020.00 |
| 6,000+ | ₹3.94 | ₹23,640.00 |
| 9,000+ | ₹3.73 | ₹33,570.00 |
10 × ₹6.88
₹68.80
excl. GST
₹81.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ04P5X
₹68.80 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 3ns@5V,50pF
- Features
- Power shutdown protection
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The Operating Voltage Range of the single inverter is 1.65-V to 5.5-V. The NC7SZ04 device contains one inverter and performs the Boolean function Y = A(overline). The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. This device is fully specified for partial-powerdown applications using loff. The loff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Applications
- AV Receivers
- Audio Docks: Portable
- Blu-ray Players and Home Theater
- Embedded PC
- MP3 Player/Recorder (Portable Audio)
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply
- Solid State Drive (SSD): Client and Enterprise
- TV: LCD/Digital and High-Definition (HDTV)
- Tablet: Enterprise
- Video Analytics: Server
- Wireless Headset, Keyboard, and Mouse
Key features
- Low Power Consumption, 10-μa Max Icc
- Supports 5-V Vcc Operation
- Inputs Accept Voltages to 5.5 v
- Max tpd of 3.3 ns at 3.3 V
- ±24-mA Output Drive at 3.3 V
- loff Supports Partial-Power-Down Mode
- Typical V0HV > 2 V at VCC = 3.3 V, TA = 25°C
- Typical VOLP < 0.8 V at VCC = 3.3 V, TA = 25°C
