onsemiDatasheet (PDF)
NC7SZ05P5X
StandardCMOS 1.65V~5.5V 4.3ns@5V,50pF 2uA 1 SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive

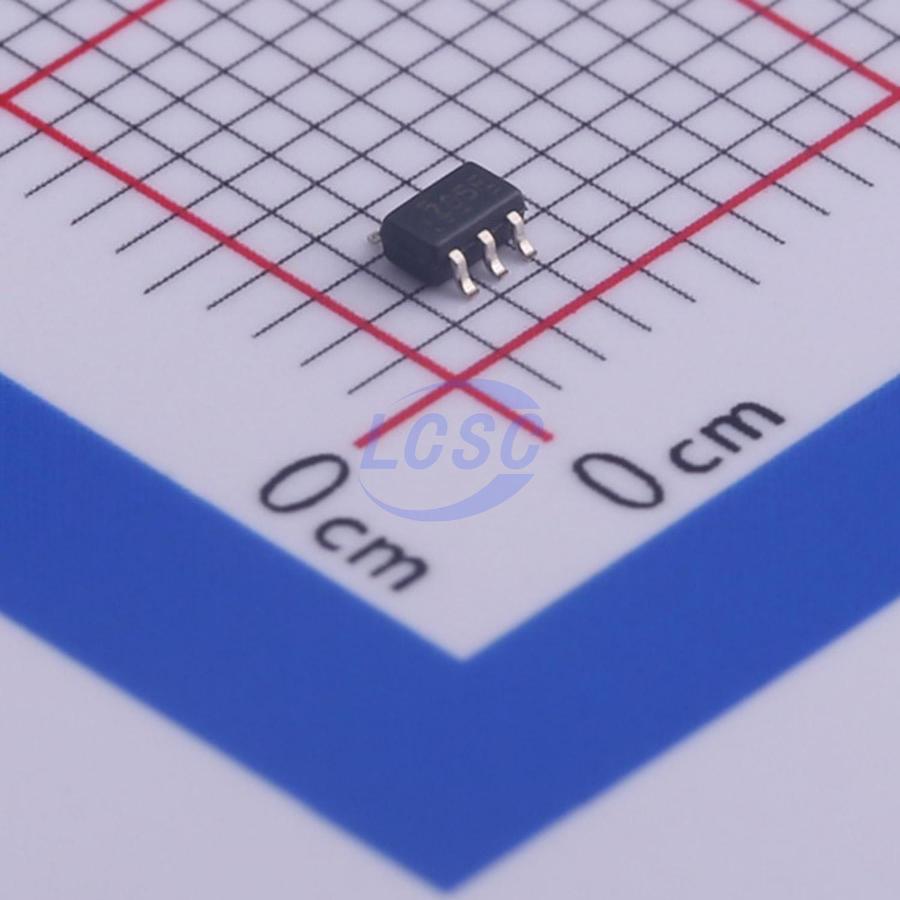

TinyLogic UHs Inverter, Open Drain Output
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ05P5X
- Store part #
- C457639
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,980 in stock
#C457639
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.46 | ₹52.30 |
| 50+ | ₹8.26 | ₹413.00 |
| 150+ | ₹7.16 | ₹1,074.00 |
| 500+ | ₹5.97 | ₹2,985.00 |
| 3,000+ | ₹5.31 | ₹15,930.00 |
| 6,000+ | ₹4.97 | ₹29,820.00 |
5 × ₹10.46
₹52.30
excl. GST
₹61.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ05P5X
₹52.30 for 5 + GST
Specifications
- output type
- Open-drain
- Input Type
- StandardCMOS
- Logic Family
- 7SZ
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;240mV;300mV;400mV;550mV
- Propagation Delay
- 4.3ns@5V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.016 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74LVCE1G06SE-7#C842502DIODES · SOT-353 | DIODES | SOT-353 | 102 | ₹108.05 · 102 in stock | View | |
 | SN74LVC1G06DC(LX)#C22469968lingxingic · SOT-353 | lingxingic | SOT-353 | 1,140 | ₹7.18 · 1,140 in stock | View |
| NC7SZ05P5#C3272534onsemi · SC-70-5 | onsemi | SC-70-5 | On request | Price on request | Quote | |
